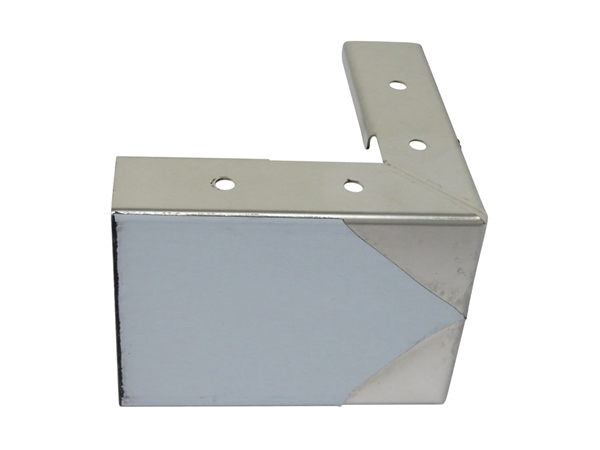

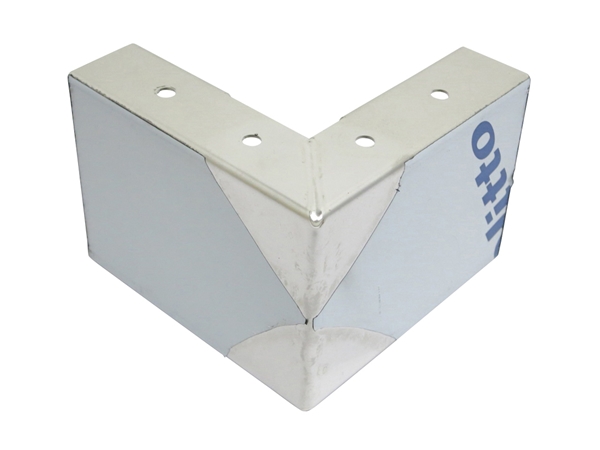

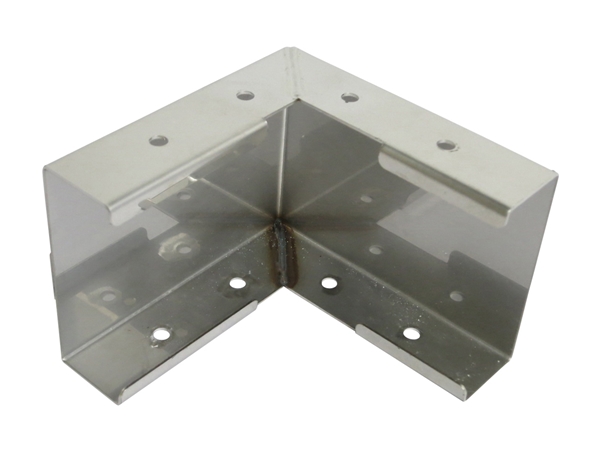

JB Aluminum Side Bumper 70H Corner Bracket A Type for Outrigger
Material // Stainless SUS304
Dimensions // Body/Height: 73mm, Length: 100x100mm, Thickness: 1.0mm Reinforcing spacer/Thickness: 3.0mm, Weight: 0.254kg

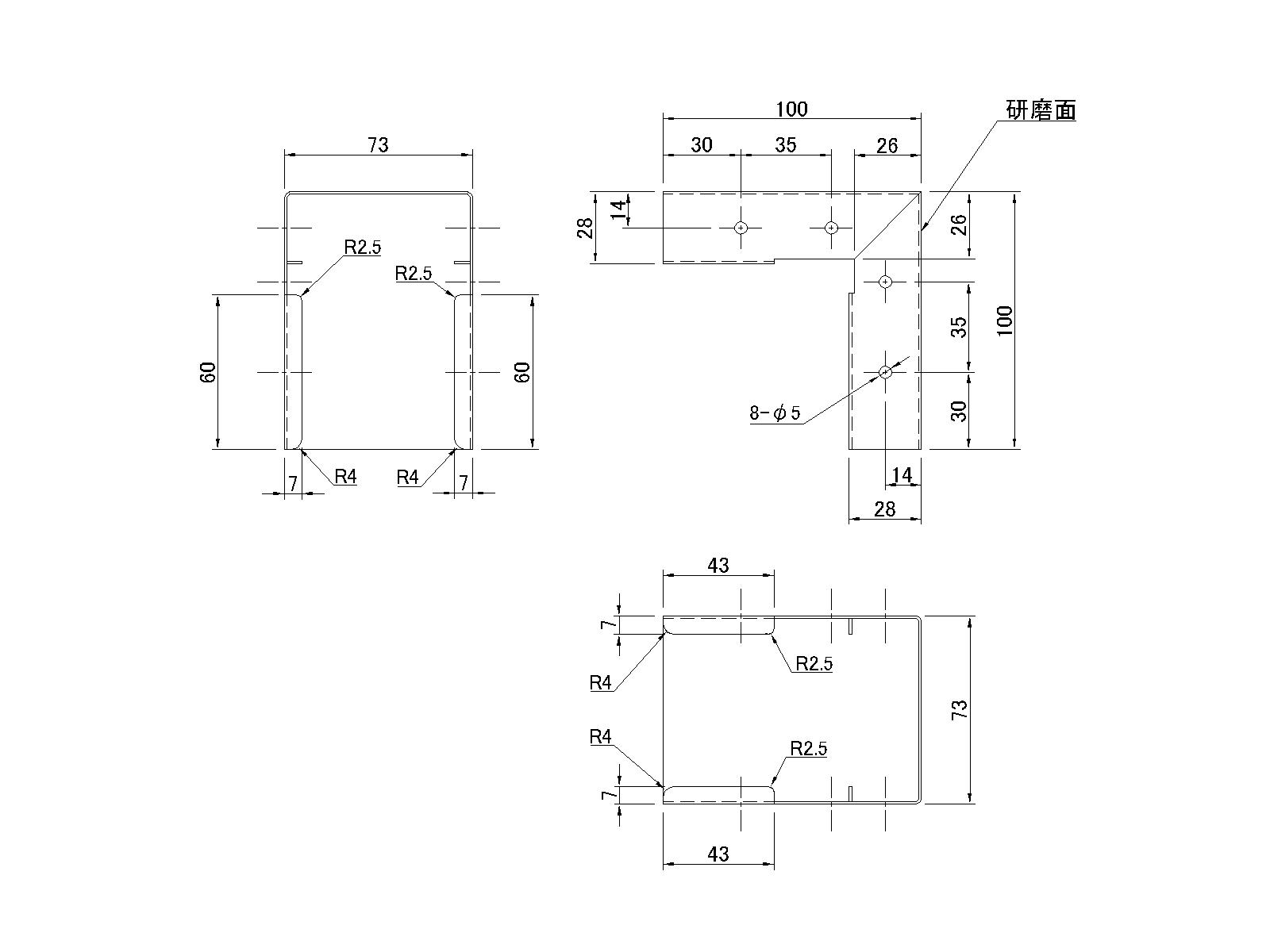

Dimensional drawing //
Surface treatment //#400 polishing (front side only)
Specifications // Outrigger part U-type configuration connecting bracket, JB aluminum side bumper 70H only
〇 JB aluminum side bumper 70H is a connecting metal fitting to form the U-shaped part of the outrigger. A type, A type bracket, B type bracket and JB aluminum side bumper 70H and mounting bracket are used in combination.
[ Assembling JB Aluminum Side Bumper 70H Corner Bracket for Outrigger ]
〇 Components for one side of the U-shaped part of the outrigger
JB Aluminum Side Bumper 70H Corner Bracket A Type x 2 for Outrigger
JB Aluminum Side Bumper 70H Corner Bracket for Outrigger A Type Bracket x 2
JB Aluminum Side Bumper 70H Corner Bracket for Outrigger B Type x 2
JB Aluminum side bumper mounting bracket x 8
JB Aluminum side bumper 70H Main body L=2500 x 1 piece
Please be sure to read
*This product is back-ordered.
*This product cannot be returned. please note that. ⇒ About cancellation/return
