Material // Aluminum A6N01S-T6
Dimensions // Height: 70 x Thickness: 25mm, Length: 2500mm, Weight: 2.14kg

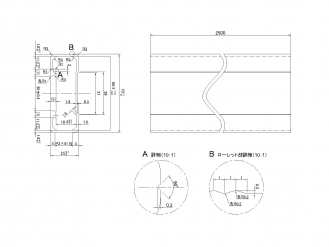

Dimensional drawing // PDF dimensional drawing of JB aluminum side bumper 70H main body L = 2500
Surface treatment // Alumite / Clear specification // Overhang, for joints

[Product features]
〇Aluminum side bumper kit. Side bumpers can be configured by combining parts. JB Aluminum Side Bumper 70H Body L = 2500 has a length of L = 2500mm, so it can be used for overhangs and length adjustment joints. The wing body of the finished car made by the manufacturer does not come with an overhang side bumper. This product is also suitable for retrofitting side bumpers for overhangs.

[ How to assemble JB aluminum side bumper ]
How to assemble JB aluminum side bumper
〇 JB aluminum side bumper body and how to attach the corners Insert one hexagon bolt M8 × 20 into the corner, insert it from the end of the body, cover the corner back plate (for extruded aluminum), and attach the bolt to the hexagon nut M8. , Spring washer M8, flat washer M8. (* Please use JIS M8 hexagon bolts)
〇 JB aluminum side bumper body and how to install the stay Insert one hexagon bolt M8 × 20 into the mounting bracket, insert it from the end of the body, and fix the bolt with the hexagon nut M8, spring washer M8, flat washer M8 at the stay part. please. (* There are no holes in the stay, * Please use JIS M8 hexagon bolts)

[Caution]
Hexagon bolt M8 × 20, hexagon nut M8, spring washer M8, and flat washer M8 required for assembling the JB aluminum side bumper are not included. Please prepare by yourself.

[ Example of using JB aluminum side bumper Installation image on vehicle ]
Example of using JB aluminum side bumper Installation image on vehicle


* For Hokkaido, a special fare of 4,320 yen (tax included) will be charged for each unit in addition to the standard fare of 1,050 yen (tax included).
* We cannot deliver to Okinawa and remote islands.


Due to the size, Seino Transportation will use it. Delivery may take some time.
Thank you for your understanding.

◆ Please be sure to read
* This product is backordered.
* This product cannot be returned. please note that. ⇒Cancellation / Return
