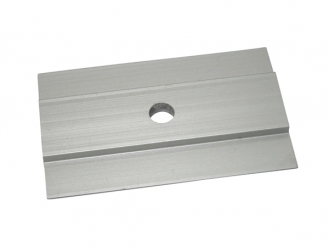

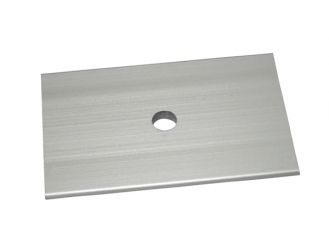

JB aluminum side bumper corner back plate (for aluminum extrusions)
Material // Aluminum A6063S-T6
Dimensions // width: 100 x length: 64mm, plate thickness: 6mm, hole diameter: φ8.5mm, weight: 0.065kg
Dimension drawing //
Surface treatment // Anodized / Clear specification // Corner back plate for aluminum extrusions (common for 70H and 100H)
〇 Aluminum side bumper kit. Side bumpers can be configured by combining parts. This product is a corner back plate for JB aluminum side bumper corner (aluminum extrusion). Can be used for both 70H and 100H.
[ Assembly method of JB aluminum side bumper ]
〇 JB Aluminum side bumper body and corner mounting method Insert a hexagon bolt M8 × 20 into the corner, insert it from the end of the body, cover the corner back plate (for aluminum extrusion), and tighten the bolt with a hexagon nut M8. Stop with the spring washer M8. (* Use JIS M8 hexagon bolts)
〇 Hexagon bolt M8 × 20, Hexagon nut M8, Spring washer M8 required for assembling JB aluminum side bumper are not included. Please prepare by yourself.
◆ Please read
* This product is an order product.
* This product cannot be returned. please note that. ⇒About cancellation / return
