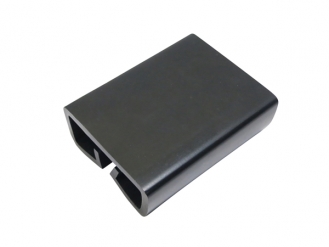

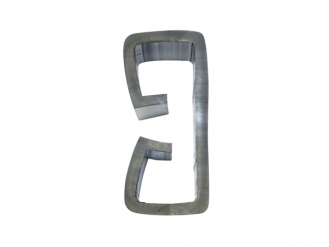

JB Aluminum Side Bumper Body Protection Rubber 70H L = 100

商品説明

Material // EPDM synthetic rubber

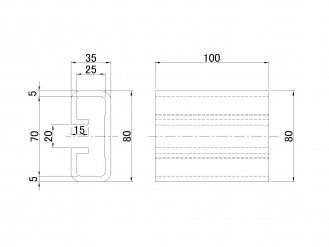

Dimensions // Width: 100 x Height: 80 mm, Board thickness: 5 mm, Weight: 0.15 kg
Dimensions //
Specifications // JB Aluminum Side Bumper Body for 70H, please fix with rivets or adhesive

[Product Features]
This is an aluminum side bumper kit. You can assemble the side bumper by combining parts. The JB Aluminum Side Bumper Body Protection Rubber for 70H (L=100) is a product that protects the tailgate and side bumper from scratches and dents caused by contact with the side bumper when the tailgate of a truck is opened.

[ JB Aluminum Side Bumper Body Protection Rubber for 70H L=100 Installation Instructions ]
Install the JB Aluminum Side Bumper 70H body by placing the JB Aluminum Side Bumper Body Protection Rubber for 70H (L=100) over the body. Be sure to fasten it in place with rivets or adhesive to prevent it from coming off.

[ JB Aluminum Side Bumper Assembly Instructions ]

To attach the JB aluminum side bumper body to the corner section, insert one M8 x 20 hex bolt into the corner section, insert it from the end of the body, cover the corner back plate (for aluminum extrusions), and secure the bolt with an M8 hex nut, M8 spring washer, and M8 flat washer. (Please use a JIS M8 hex bolt.)

[Notes]
* The M8 x 20 hex bolts, M8 hex nuts, M8 spring washers, and M8 flat washers required for assembling the JB aluminum side bumper are not included. Please prepare these items yourself.

[ Example of JB Aluminum Side Bumper installation on a vehicle ]
