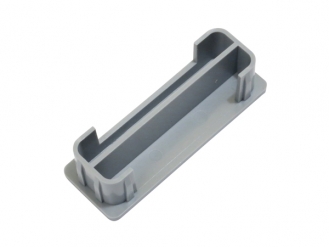

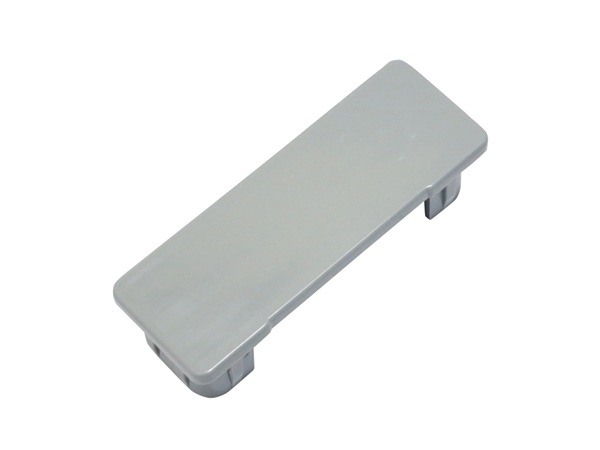

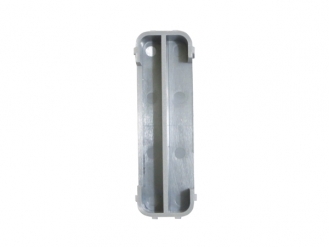

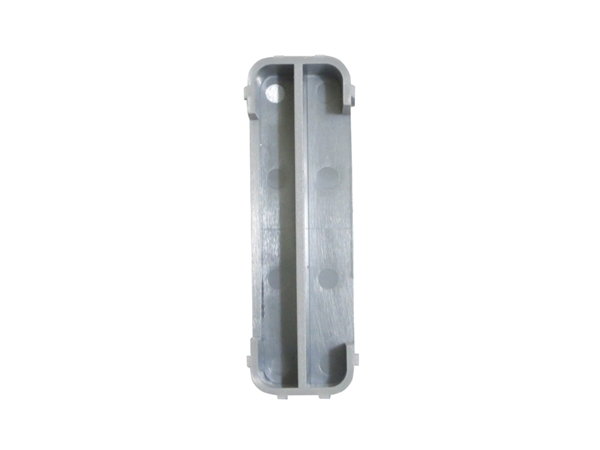

JB aluminum side bumper end cap for 70H

Enlarge the image
JB aluminum side bumper end cap for 70H
JB aluminum side bumper end cap for 70H
JB aluminum side bumper end cap for 70H
JB aluminum side bumper end cap for 70H
JB aluminum side bumper end cap for 70H

JB aluminum side bumper end cap for 70H

297円
Item #: 1134700

  • Quantity

Material // ABS resin dimensions // W: 25 x H: 70mm, Weight: 0.01kg

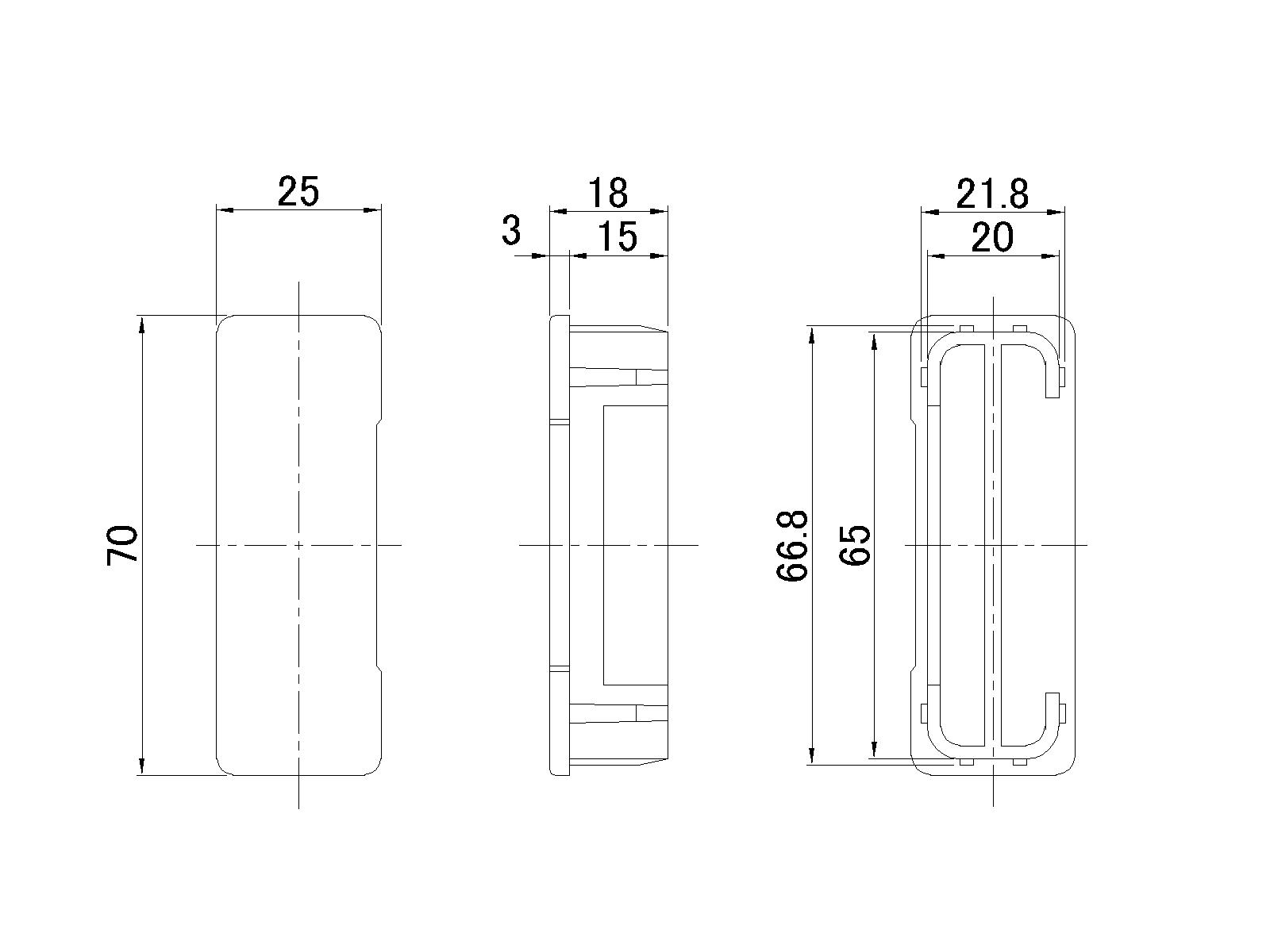

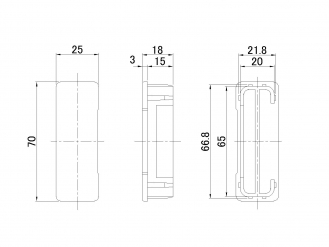

Dimension drawing // PDF dimensions for JB aluminum side bumper end cap 70H
Specifications // JB aluminum side bumper body 70H, color: dark gray, used by fitting into the body cut


[Product Features]
〇 Aluminum side bumper kit. Side bumpers can be configured by combining parts. JB Aluminum Side Bumper End Cap For 70H is a cap that covers the cutting part when the main body is cut because the lid of the tool box or the arm of the tilting opening / closing auxiliary device interferes with the aluminum side bumper body.


[ Assembly method of JB aluminum side bumper ]
How to assemble JB aluminum side bumper
〇 JB Aluminum side bumper body and corner mounting method Insert a hexagon bolt M8 × 20 into the corner, insert it from the end of the body, cover the corner back plate (for aluminum extrusion), and tighten the bolt with a hexagon nut M8. Stop with the spring washer M8. (* Use JIS M8 hexagon bolts)


[Notes]
Hexagon bolt M8 × 20, Hexagon nut M8, Spring washer M8 required for assembling JB aluminum side bumper are not included. Please prepare by yourself.


[ JB aluminum side bumper usage example Installation image on vehicle ]
JB aluminum side bumper usage example Installation image on a vehicle


◆ Please read
* This product is an order product.
* This product cannot be returned. please note that. ⇒About cancellation / return
