Non-slip bracket Cono-shaped 110 × 75 Hino Large Size (May 2017-)

Enlarge the image
Non-slip bracket Cono-shaped 110 × 75 Hino Large Size (May 2017-)
Non-slip bracket Cono-shaped 110 × 75 Hino Large Size (May 2017-)

Non-slip bracket Cono-shaped 110 × 75 Hino Large Size (May 2017-)

836円
Item #: 1141071

  • Quantity

Material // SS400
Dimensions // width: 110 x length: 75mm, thickness: 65mm, plate thickness: 9mm, anti-slip bolt hole: 21.5-31.5mm oblong hole, weight: 0.99kg

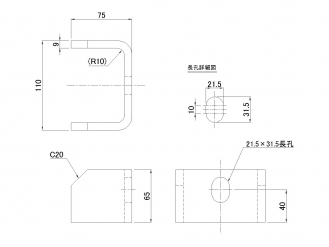

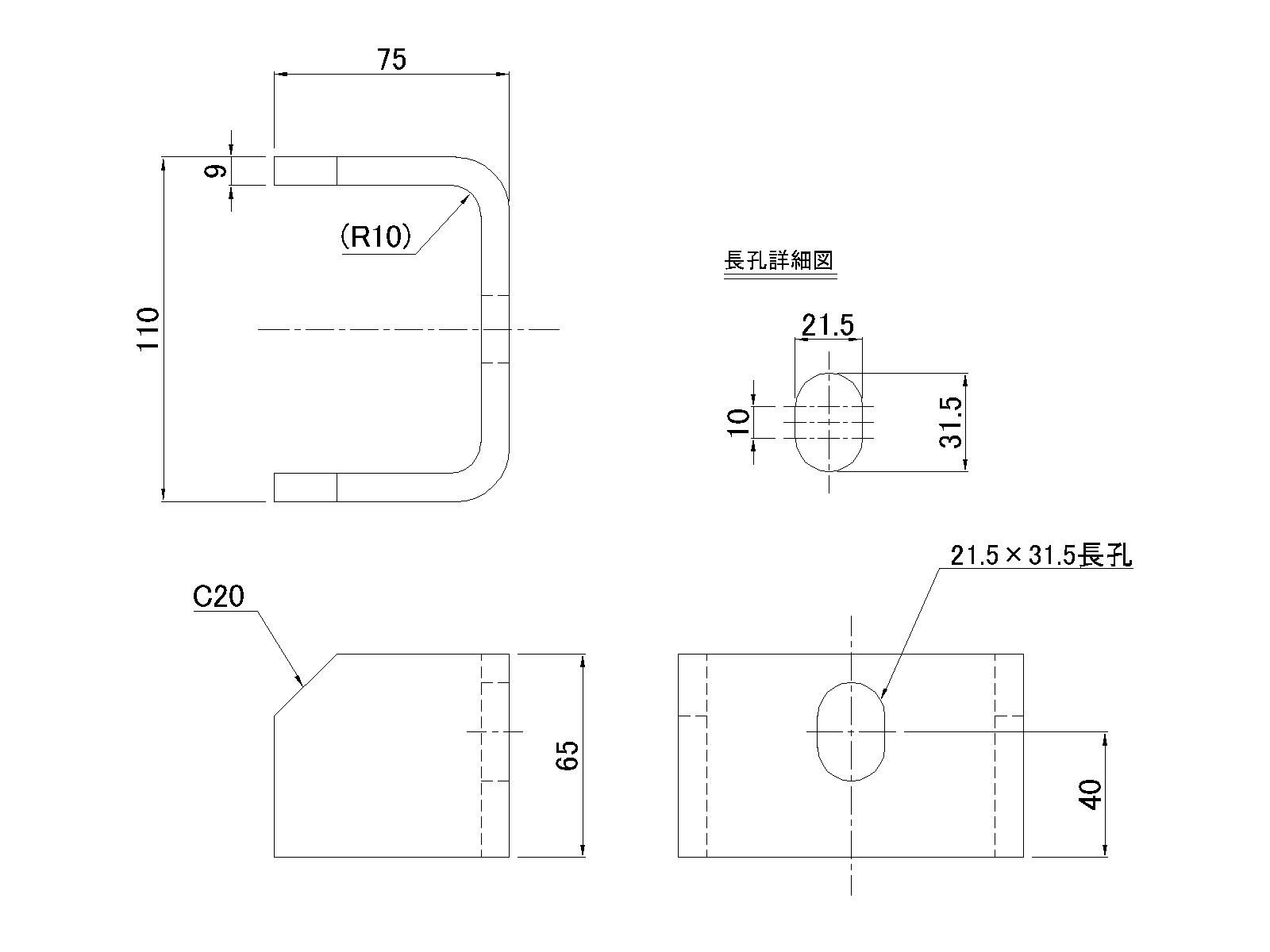

Dimension drawing // Non-slip fitting Cono-shaped 110 × 75 PDF dimensions for Hino Large-Scale (from May 2017)
Surface treatment // Black paint specifications // * Please install according to the bodywork manual


[Product Features]
Hino large size (from May 2017) chassis is prohibited from drilling. This product conforms to the hole pitch of the chassis of Hino Large (from May 2017), and can be bolted to the chassis, with a non- slip bracket Cono-shaped 110 × 75 with hole P = 50 Hino Large (2017 It is a non-slip fitting that is installed on the vertical joist side of the body in combination with the


[Notes]
〇Install according to the chassis manufacturer's bodywork manual.


◆ Please read
* This product is an order product.
* This product cannot be returned. please note that. ⇒About cancellation / return
