Material // Body: ABS resin, Lens: PMMA (acrylic)
Dimensions // Length: 150 x Width: 28 x Height (not including bolts): 23.5mm, Mounting pitch: 135mm, Weight: 0.055kg

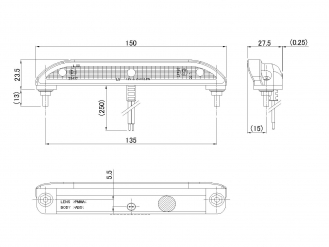

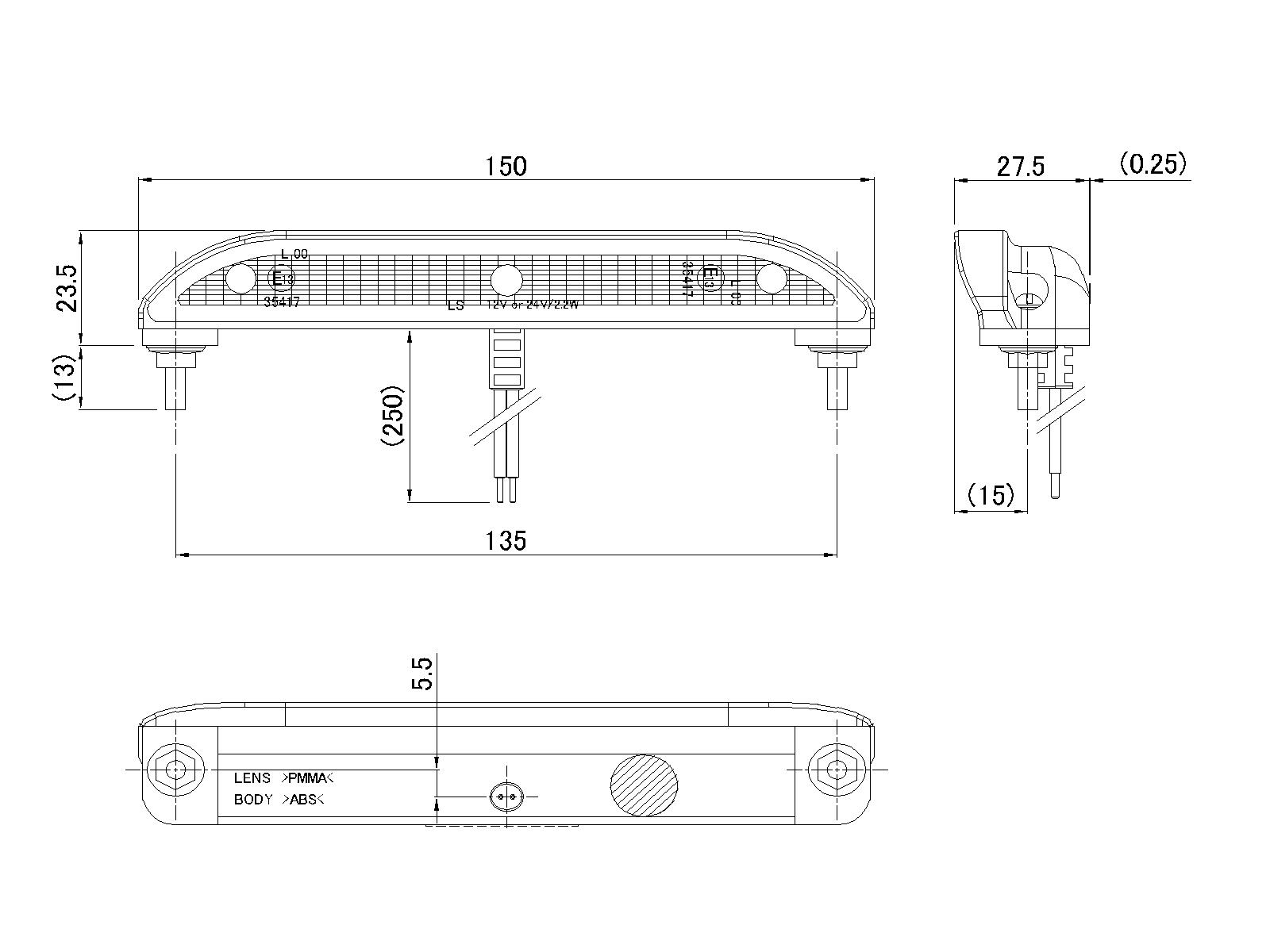

Dimension drawing //
Surface treatment // Chrome plating specification // Rated voltage: DC12 / DC24V, Allowable voltage range: DC10V to DC40V, Power consumption: 2.2W, Current: 12V-0.17A 24V-0.1A, Operating environment temperature: -20 ℃ ~ 50 ℃, waterproof performance: IP65, luminous flux: 91.8 lumens
JAN code: 4909002933445

[Product Features]
■ Vehicles newly registered after June 15, 2020 must be equipped with number lamps that meet ECR R4 technical standards. This product is a vehicle inspection compatible number lamp that meets the standards.
■ Acquired ECE standard R4 category 2a, 2b certification
Approval number: E13 * 4R00 / 19 * 35417 * 00

[Notes]
■ When mounting on a vehicle, strictly observe the positional relationship and incident angle specified at the time of ECE certification acquisition. (Do not change the positional relationship with the license plate or the incident angle.)
■ Depending on the vehicle model, the ball break detector may light up when this product is installed. In this case, match the power consumption of the genuine number lamp with a resistor.

[ LED number lamp according to vehicle type LSL-1014AV ECE certification and number plate position, incident angle ]
■ LED number lamp by vehicle type LSL-1014AV Click here for a list of ECE certification and the position relationship between the license plate and incident angle ⇒ Click here to obtain.

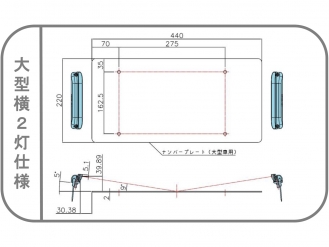

〇 LED number lamp in the case of large two-sided lamp specification LSL-1014AV Position relationship between ECE certification and number plate, incident angle

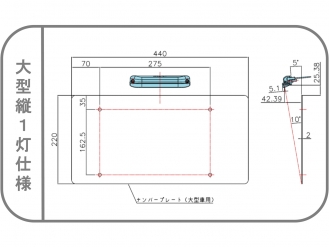

〇 LED number lamp in the case of one large vertical lamp specification LSL-1014AV Position relationship between ECE certification and number plate, incident angle

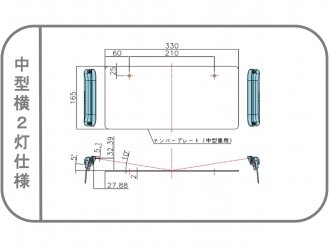

〇 LED number lamp in case of medium size 2 side lamp specification LSL-1014AV Positional relationship between ECE certification and number plate, incident angle

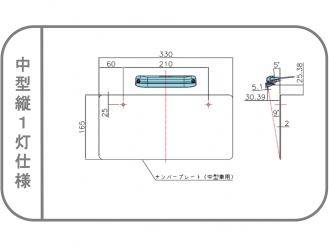

○ LED number lamp LSL-1014AV in the case of one medium-sized vertical lamp specification Position relationship between ECE certification and number plate, incident angle

◆ Please read
* This product is an order product.
* This product is not returnable. please note that. ⇒About cancellation / return
