Seiko Rack Spring SRC550 (48721) SRCM-S55000

商品説明

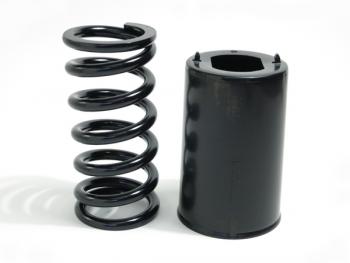

Material // Body: Iron, Case: Resin Dimensions // Wire diameter: φ17mm, Weight: 4.15kg
Specifications // Spring: Black

Seiko rack spring.

◆ Please be sure to read
⇒ Cancellation / Return

○ Spring selection condition table

Model				SRC350	SRC550	SRC550 + auxiliary SP
Adjustment point				A	A	A
Tilt load conversion moment (kg.m)				24-30	38-50	60-73
Tilt specifications and adaptive tilt length
Code	Material / structure	Height (mm)	Unit weight (kg / m)	Seiko rack SRC type tilt length per piece (m)
(1)	wooden	400	18 18	6.0-7.5	×	×
(2)	(1) + 400H (with auxiliary tilt)	400 + 400	18 + 10	2.3-2.9	3.7-5.0	6.1-7.5
(3)	wooden	450	twenty two	4.4-5.5	7.0-9.6	×
(Four)	(3) + 450H (with auxiliary tilt)	450 + 450	22 + 12.5	1.7-2.1	2.6-3.7	4.3-5.4
(Five)	Aluminum block	800	14	4.0-5.1	6.4-8.5	10.5-12.0
(6)		1000	17 17	2.7-3.3	4.2-5.8	6.8-8.3
(7)		1200	20	1.9-2.4	3.0-4.2	4.9-6.1

* Reference value: Lashing rail unit weight 3 (kg / m)

[ Example of Seiko Rack SRC type body and spring model selection ]
Please see the table.
Please check the three points of the tilt material / structure of the truck, the tilt height, and the tilt length.
Select the item that meets the conditions from the left column (1) to (7) from the tilt material / structure and tilt height.
Select the spring that intersects with the "model (combination)" in the table from the tilt length.

Example : 4t standard body (without crane), installation conditions: normal hinge, tilting step amount 0mm, floor frame height 100mm
○ Tilt material / structure: Aluminum tilt ○ Tilt height: 800mm
○ Tilt length: L = 6.2M

will do. From the installation conditions, the main body is SRC (48781).
Select item (5) from the tilt material / structure and tilt height. Since the tilt length is about 6.4 to 8.5M, the spring selection is SRC550.
(If the tilt length is the boundary, it is safer to select a strong spring.)

* If a steel lashing rail is installed, the unit weight per 1M will increase by 3kg. In the case of the above example, select item (6) from the unit weight. From the tilt length, I think that SRC550 + auxiliary spring is good for spring selection.
