Seiko Rack Body SRC(48551) A260T SRCM-1260C1-12 Thin Type

商品説明

Material: Iron
Dimensions//Arm length: 260mm, Tilt bracket protrusion: 18mm, Weight: 9.18kg
Specifications//Installation conditions: Tilt step amount 5 to 50 mm

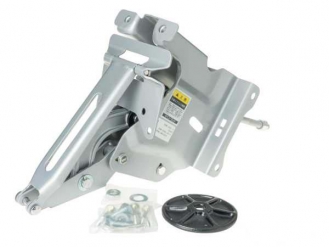

This is the Seiko rack body (single unit).
For normal hinged gates and inverted hinged gates that do not have width restrictions, the standard is generally used.
*This is a minor change product of the "Seiko Rack Body SRC-T (48550) Thin Type." The external shape of the arm and tilt bracket is different, but the mounting dimensions (hole pitch) are the same, so it can be replaced as is.

◆Please read
*This product is a special order item.
*This product cannot be returned. Thank you for your understanding. ⇒About cancellations and returns

Spring selection criteria table

Model				SRC350	SRC550	SRC550+auxiliary SP
Adjustment points				A	A	A
Tilt load conversion moment (kg.m)				24～30	38–50	60 to 73
Tilt specifications and applicable tilt length
sign	Material/Structure	Height (mm)	Unit weight (kg/m)	Seiko Rack SRC Type Tilt Length per Unit (m)
(1)	wooden	400	18	6.0 - 7.5	×	×
(2)	(1)+400H (with auxiliary tilt)	400+400	18+10	2.3–2.9	3.7–5.0	6.1–7.5
(3)	wooden	450	twenty two	4.4–5.5	7.0 - 9.6	×
(4)	(3)+450H (with auxiliary tilt)	450+450	22+12.5	1.7 to 2.1	2.6–3.7	4.3–5.4
(5)	Aluminum Block	800	14	4.0 - 5.1	6.4 - 8.5	10.5 to 12.0
(6)		1000	17	2.7–3.3	4.2–5.8	6.8–8.3
(7)		1200	20	1.9 to 2.4	3.0–4.2	4.9–6.1

*Reference value: lashing rail unit weight3 (kg/m)

[ About Seiko Rack model selection ]
Please see the table.
Please check three points: the material and structure of the truck's tailgate, the tailgate height, and the tailgate length.
Select the item that matches your conditions from the left column (1) to (7) regarding the gate material, structure, and gate height.
Select the spring that intersects with the "Model (combination)" in the table based on the tilt length.

Example : 4t standard body (without crane), installation conditions: normal hinge, tilt step amount 0mm, floor frame height 100mm
○Tilt material and structure: Aluminum Tilt ○Tilt height: 800mm
○Tilt length: L=6.2M

Due to the installation conditions, the main unit is SRC (48781).
Select item (5) based on the gate material, structure, and gate height. The gate length is roughly 6.4 to 8.5 m, so select the SRC550 spring.
(If the tilt length is at the boundary, it is safer to choose a stronger spring.)

*If a steel lashing rail is installed, the unit weight per meter will increase by 3 kg. In the above example, select item (6) based on the unit weight. Given the length of the flap, we recommend selecting SRC550 + auxiliary spring.

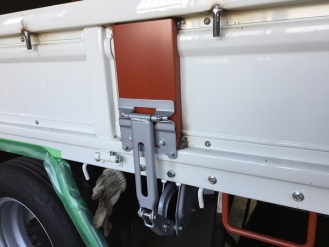

[ Example of using Seiko Rack SRC type: Installation image on a manufacturer-made wooden finished gate ]
