Material // Steel SS400

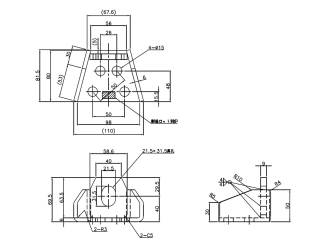

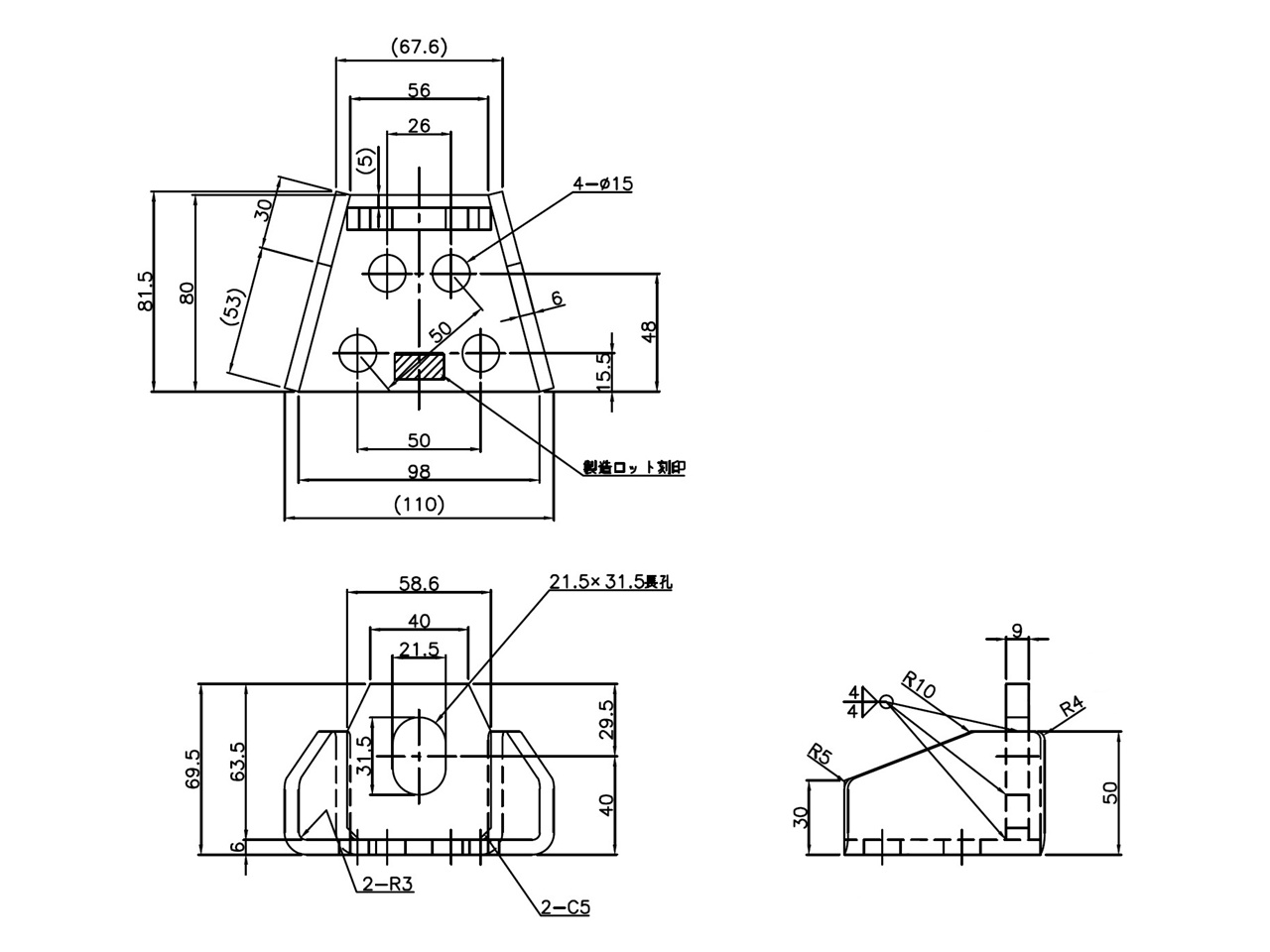

Dimensions // Width: 110 x Length: 81.5 mm, Thickness: 50 mm, Plate Thickness: Bolt Receptacle 9 mm / Body 6 mm, Anti-slip Bolt Hole: 21.5-31.5 mm Slot, Chassis Hole: 4-φ15 mm, Diagonal Pitch 50 mm, Weight: 0.79 kg
Dimensions //
Surface treatment // Black paint

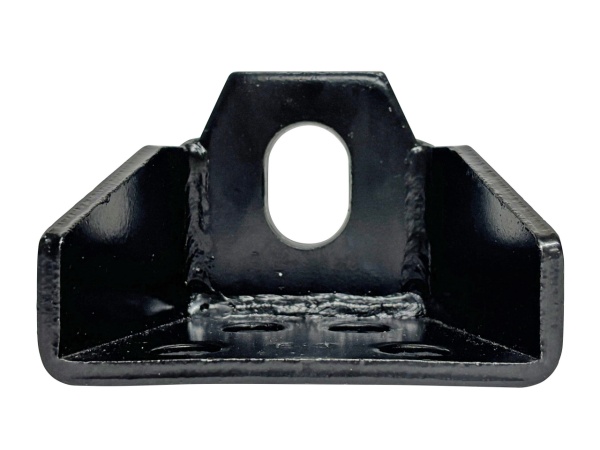

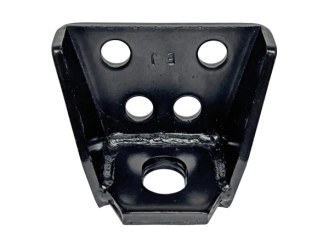

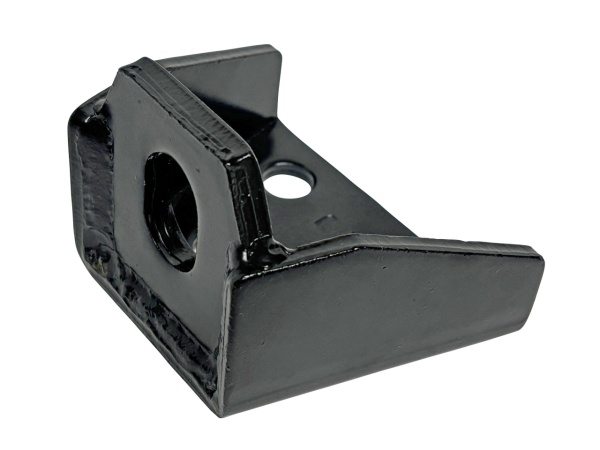

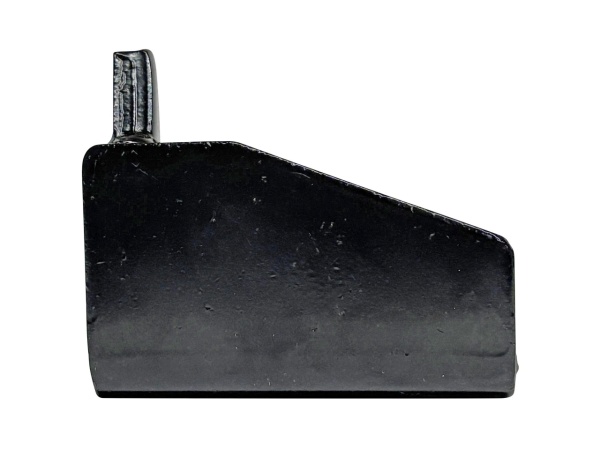

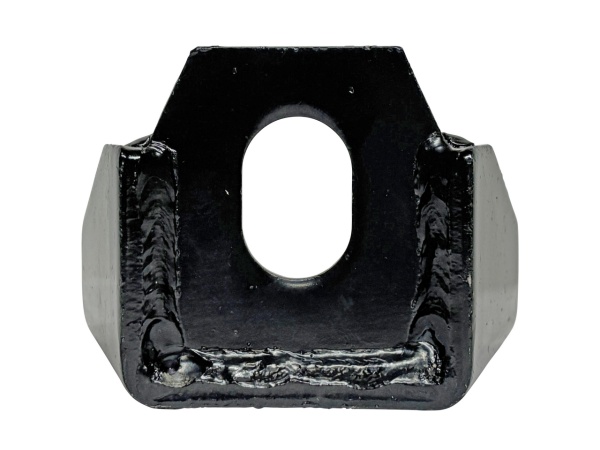

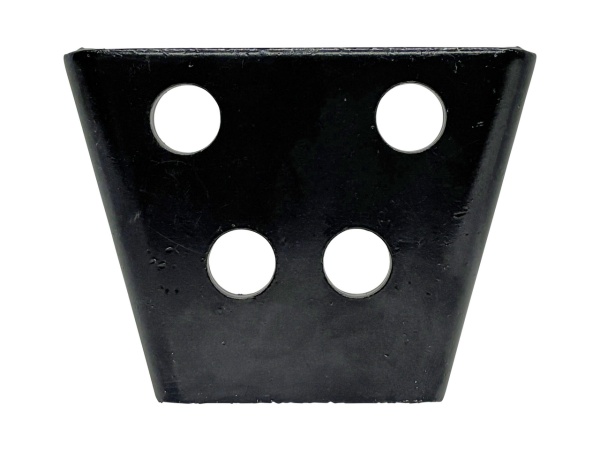

Specifications // Anti-slip bracket, opposing type, 4-hole multi-purpose, P=50, black paint

[Product Features]

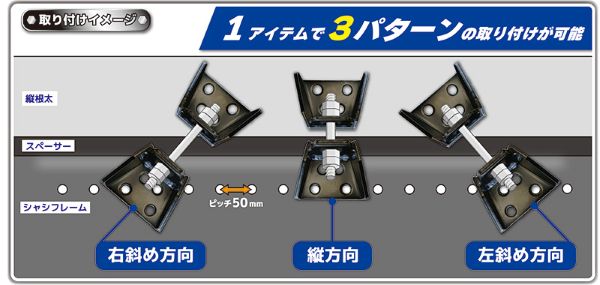

This anti-slip bracket is compatible with the chassis hole pitch of Hino large and medium-duty vehicles, Isuzu large, Fuso large and medium-duty vehicles, and UD large-duty vehicles, excluding Isuzu medium-duty (UD medium-duty) chassis. In modern truck body construction, anti-slip brackets are rarely welded to the chassis. By bolting the anti-slip bracket to the chassis, the chassis strength is not affected by welding heat. This product is compatible with the 50mm pitch bolt holes used by many chassis manufacturers and vehicle models, and can be angled in three directions, making it highly versatile.

[Notes]
〇Please install in accordance with the chassis manufacturer's installation instructions.

◆Please be sure to read
*This product is a special order item.
*This product cannot be returned. Thank you for your understanding. ⇒About cancellations and returns
