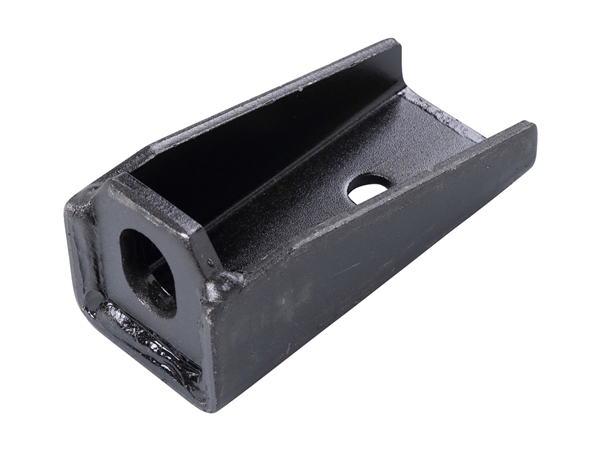

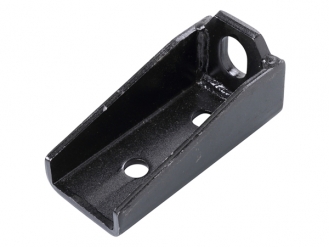

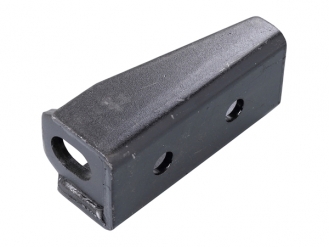

Anti-slip fitting Opposite type L = 145 With hole P = 60 Hino Large (from May 2017)

Enlarge the image
Anti-slip fitting Opposite type L = 145 With hole P = 60 Hino Large (from May 2017)
Anti-slip fitting Opposite type L = 145 With hole P = 60 Hino Large (from May 2017)
Anti-slip fitting Opposite type L = 145 With hole P = 60 Hino Large (from May 2017)
Anti-slip fitting Opposite type L = 145 With hole P = 60 Hino Large (from May 2017)

Anti-slip fitting Opposite type L = 145 With hole P = 60 Hino Large (from May 2017)

1,265円
Item #: 1141075

  • Quantity

Material // SS400
Dimensions // Width: 66 x Length: 145mm, Thickness: 66mm, Plate thickness: Bolt receiving part 9mm / Body 6mm, Non-slip bolt hole: 21.5-31.5mm Slot hole, Chassis hole: 2-φ15mm, Pitch 60mm, Weight : 1.05kg

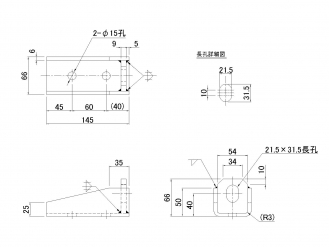

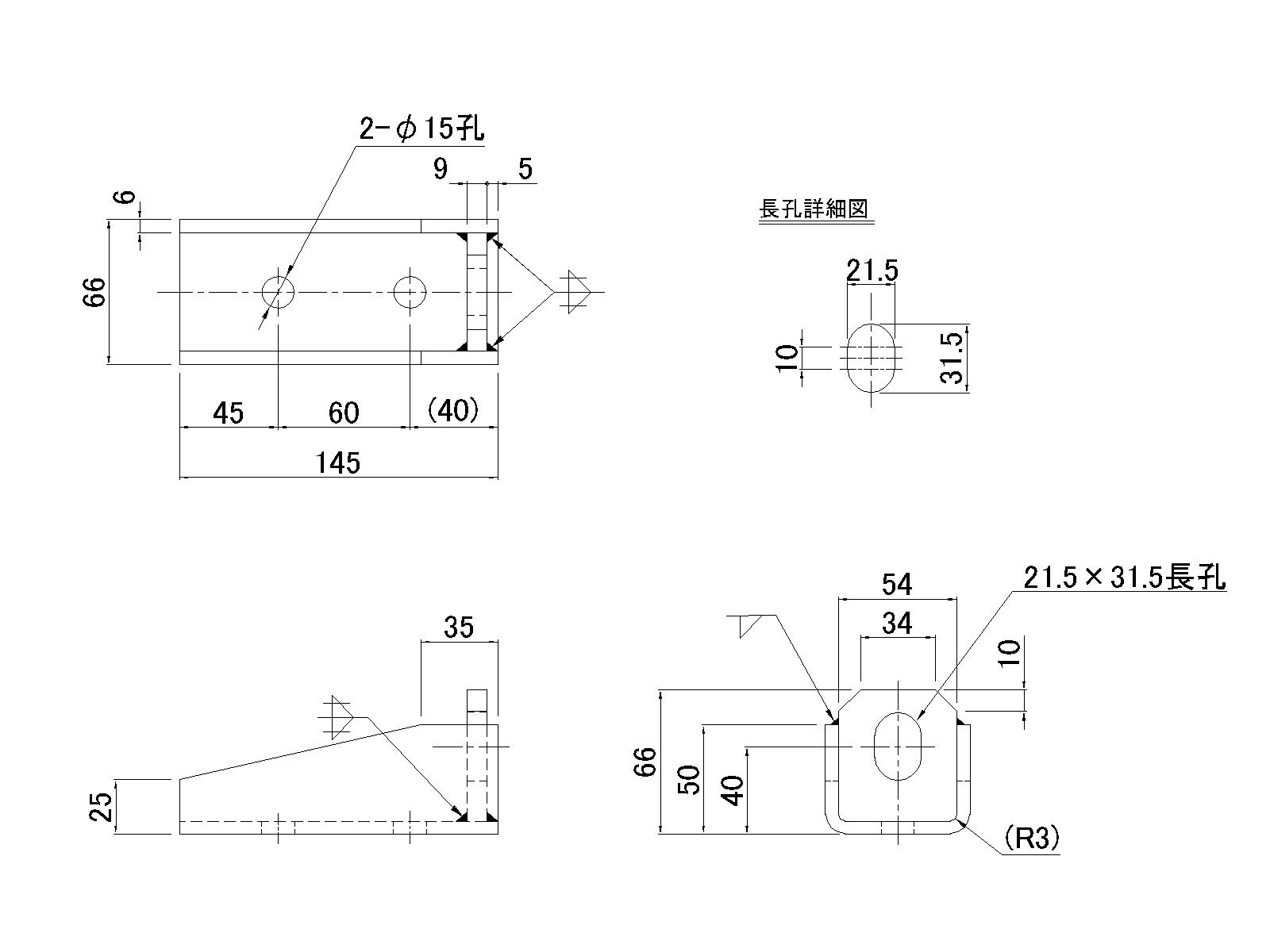

Dimension drawing // Non-slip fittings Opposite type L = 145 With hole P = 60 Hino large size (from May 2017) PDF dimensions
Surface treatment // Black paint specification // Fits the hole pitch of Hino large-scale (from May 2017) * Please install according to the bodywork manual


[Product Features]
Hino large size (from May 2017) chassis is prohibited from drilling. This product is a non-slip bracket (slip bolt receiver) that is compatible with the hole pitch of Hino Large (from May 2017) chassis and that can be bolted to the chassis. The P = 60 type is for vertical installation with respect to the chassis.

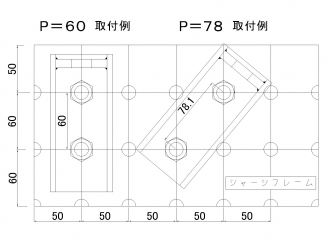

[ Anti-slip fitting, facing type L = 145 with holes, installation example of P = 60 and P = 78 for Hino Large Size (from May 2017) ]
Anti-slip fitting Opposite type L = 145 With hole Difference in mounting direction of P = 60 and P = 78 types for Hino Large (from May 2017)
〇P = 60 type is for vertical installation that is installed perpendicular to the chassis.
〇P = 78 type is for attaching diagonally to the chassis.


[Notes]
〇Install according to the chassis manufacturer's bodywork manual.


◆ Please read
* This product is an order product.
* This product cannot be returned. please note that. ⇒About cancellation / return
