Material: Stainless steel SUS304
Dimensions // Plate thickness: 4.0mm, Pin diameter: φ10mm, Weight: 0.369kg

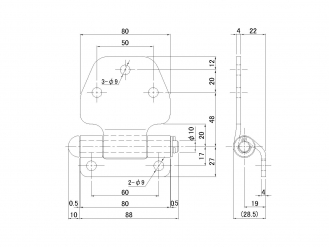

Dimensions // PDF dimensional drawing of stainless steel block hinge for small cars, center groove, side, φ10 pin, L
Surface treatment // #400 polishing (front surface only)
Specifications // For left side, for small trucks, for aluminum blocks with middle groove

[Product Introduction]
For use with aluminum doors that protrude halfway from the floor frame. For use only with doors with a straight lower rail.
