Vehicle inspection compatible number stay LSL-1014 Number lamp mounting stay Large type HM-3 type Horizontal 2 lights

Enlarge the image
Vehicle inspection compatible number stay LSL-1014 Number lamp mounting stay Large type HM-3 type Horizontal 2 lights

Vehicle inspection compatible number stay LSL-1014 Number lamp mounting stay Large type HM-3 type Horizontal 2 lights

7,150円
Item #: 8200190

  • Quantity

Material // ZAM (iron)
Dimensions // Height: 240 x Width: 680 x Thickness: 22.95 (51) mm (when number lamp is attached), Plate thickness: 3.2mm, Weight: 4.43kg

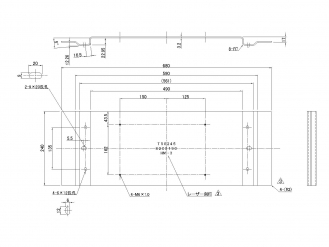

Dimensional drawing // Vehicle inspection compatible number stay LSL-1014 Number lamp mounting stay Large size HM-3 type Horizontal 2 lights PDF dimensional drawing
Specifications // For large size, vehicle inspection compatible, horizontal 2 light specifications


【Description of item】
For vehicles newly registered after June 15, 2020, it is obligatory to install a number lamp that satisfies the ECE R4 technical standards in accordance with the positional relationship with the license plate established at the time of obtaining ECE certification. .. This number lamp mounting stay complies with this standard.


【Characteristic】
〇 A mounting stay that protects the positional relationship between the license plate and license lamp, which was established when the ECE certification was acquired.
〇 The vehicle distribution association and the incident angle are measured by the Japan Vehicle Inspection Association to obtain a test report.


【exam result】
Vehicle inspection compatible number stay LSL-1014 Number lamp mounting stay Large size HM-3 type Horizontal 2 lights: Test report No. T96245


[Notes]
* Can be used for new registration after June 15, 2020. Please attach the test report when you newly register.
* When mounting on a vehicle, follow the vehicle safety standards.


◆ Please be sure to read
* This product is back-ordered.
* This product cannot be returned. please note that. ⇒ About cancellation / return
