LED Working Lamp Square LSL-1402B Reinforced Bracket (12/24/48V Common) 15W

商品説明

Material: Body material: Aluminum die-cast, Lens: PMMA (transparent)

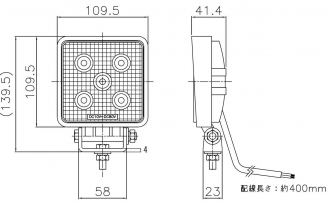

Dimensions/Main unit/Height: 109.5 x Width: 109.5 x Depth: 41.4 mm, Weight: 0.59 kg
Dimensions //
Surface treatment // Black paint
Specifications: DC12/24/48V compatible, LED element: 3W x 5 pieces, rated current: 24V-0.5A, luminous flux: 1100 lumens, waterproof performance: IP67, earthquake resistance: equivalent to 7G, with bracket
JAN code: 4909002932424

[Product Description]

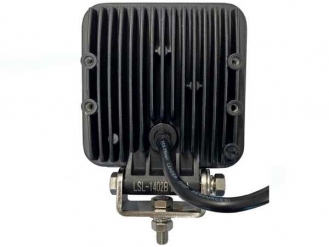

The square LED working lamp LSL-1402B is a minor change from the LSL-1002B . The thickness of the mounting bracket has been increased to 4mm to prevent cracks and breaks in the bracket. The lamp body is the same as the LSL-1002B, so you can use it in the same way as before.

[ About the reinforced bracket ]
*By increasing the mounting bracket that supports the light body from the previous 2mm to 4mm, we have taken measures to prevent the bracket from cracking and breaking, and have improved its ability to withstand vehicles with strong vibrations.

[Notes]
*Please check the safety standards for installation before use.
* Be sure to waterproof the wiring connections using waterproof heat shrink tubing, waterproof butyl tape, etc.
*Condensation may occur on the inside of the lens due to the temperature difference between inside the lamp and the outside air.
*Lights and wiring may generate slight noise. Please check the operation of radio-controlled devices and other devices that are operated by radio waves before using them.
*Depending on the vehicle and installation location where strong vibrations are applied, damage may occur. Although it has vibration resistance equivalent to 7G, please add vibration-proofing measures if installing in a place with strong vibrations.
