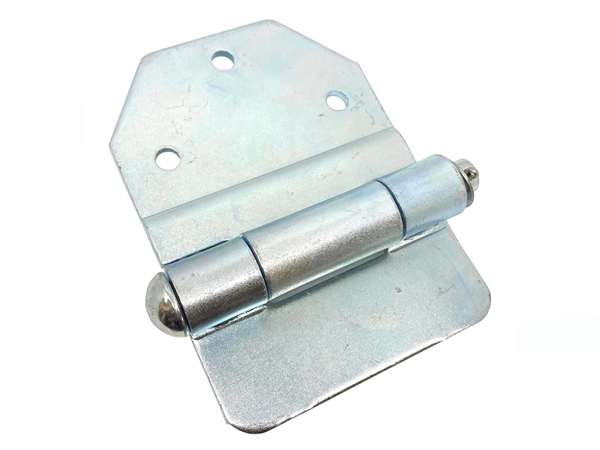

Block Hinge J6 Outer Groove Side 2mm Step No Pilot Hole L Plated

商品説明

Material: Steel SS400
Dimensions // Plate thickness: 4.5mm, Pin diameter: φ12.7mm, Weight: 0.72kg
Dimensions //
Surface treatment//Trivalent plating
Specifications: For left side, no pilot hole, for aluminum blocks with outer grooves and steps

[Product Introduction]
This is an external groove type steel hinge suitable for mounting aluminum gates. It is used when the aluminum gate is a straight type with a floor frame. The lower side of the lower rail of the aluminum block is dedicated to the stepped type (e.g. Nikkei aluminum block, UACJ aluminum block). This is a hinge with a φ12.7 hinge pin. An improvement has been made from the conventional J6 hinge to further reduce interference between the floor frame and the aluminum gate drip. You can also choose between a pilot hole and one with pilot holes. This product is a type without pilot holes.

[Notes]
The mounting hole pitch etc. has been changed from the conventional J6 hinge so it is not compatible.
[Conventional J6 hinge]
Block hinge J6 Outer groove side step R plating
Block hinge J6 outer groove side step L plating
