Material // Iron
Dimensions: Length: 442 x Depth: 205 x Height: 189 mm

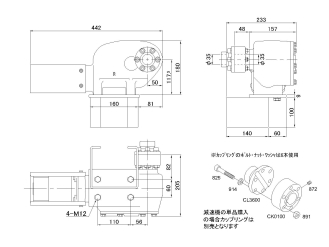

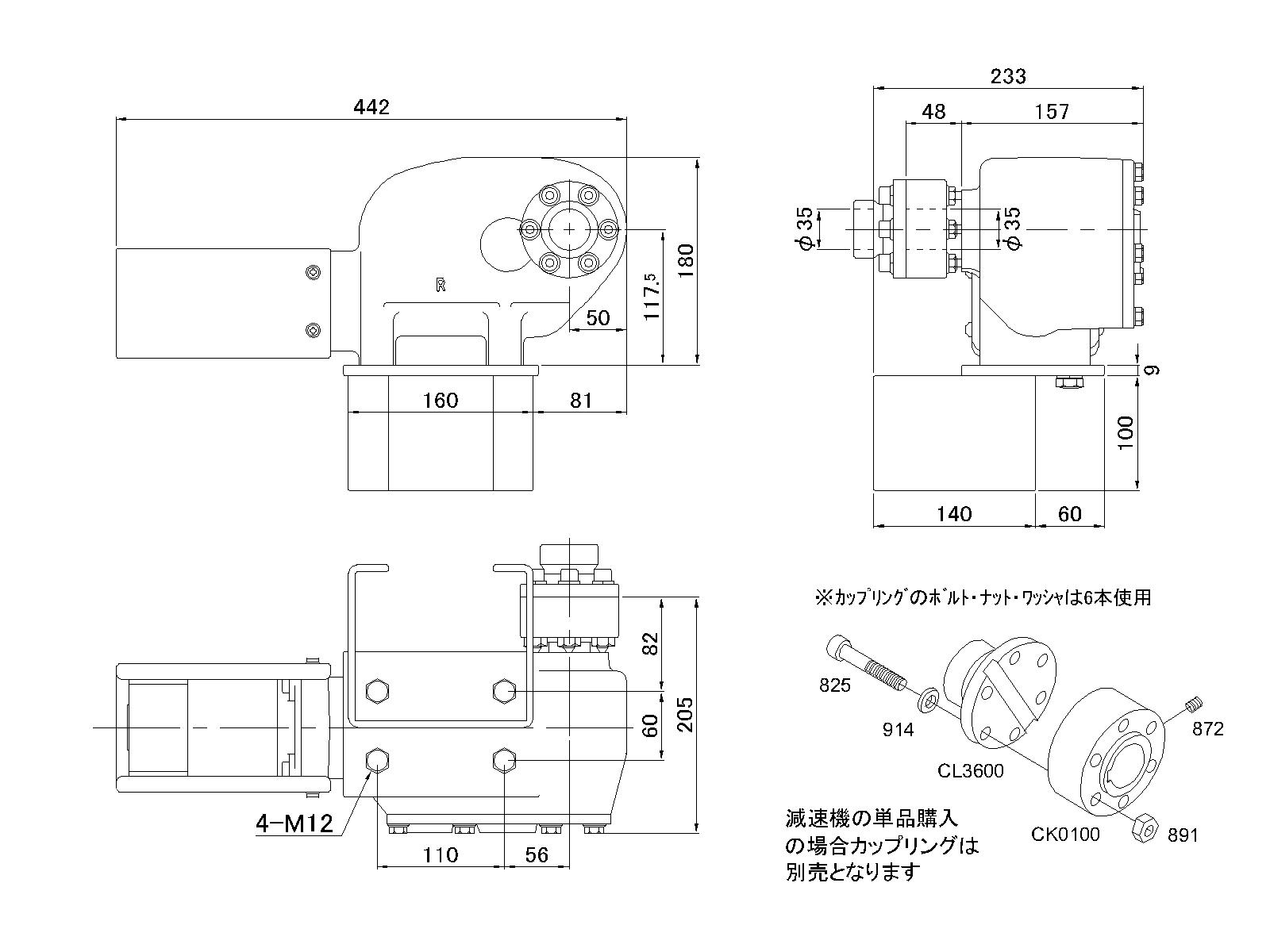

Dimensions // *All diagrams show right-handed use
Surface treatment // painting
Specifications // Reducer: E100F type, output shaft side and shaft side couplings sold separately, for left-hand use

[Product Description]

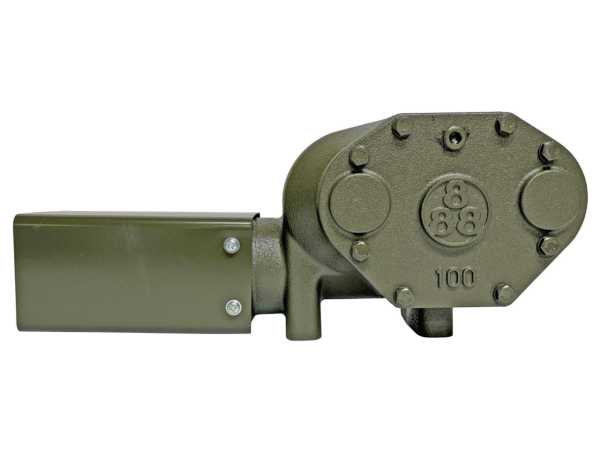

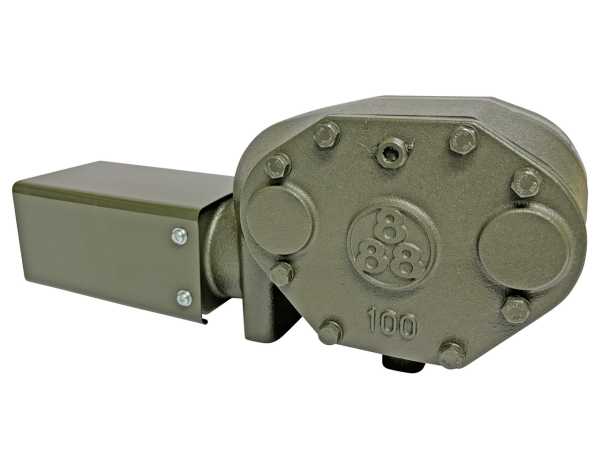

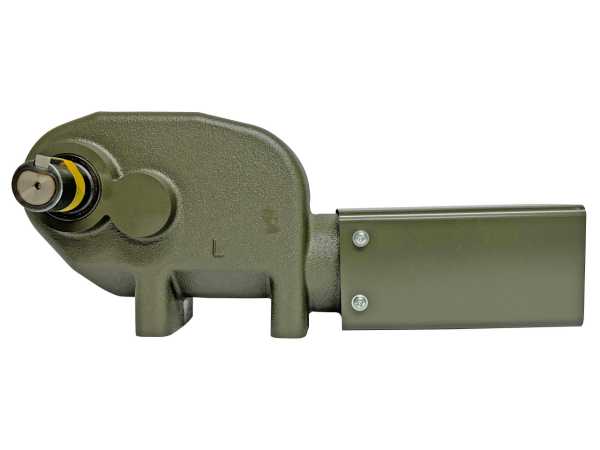

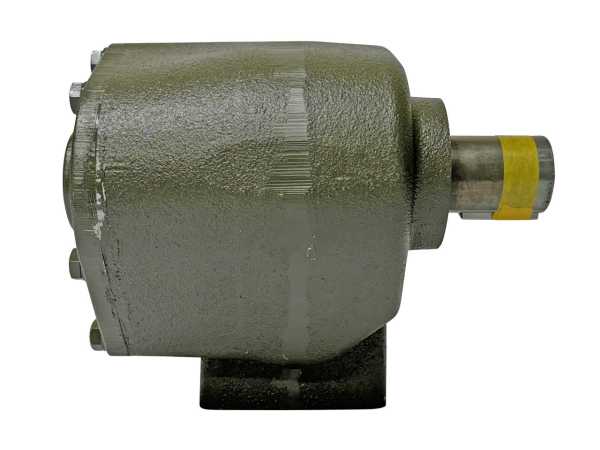

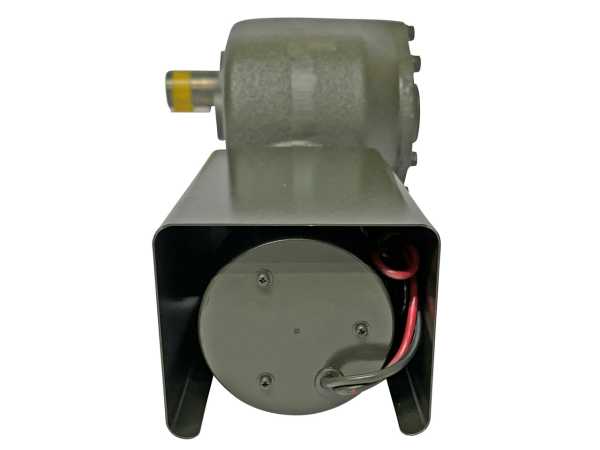

This is a repair reducer for Tamura Sogyo's Quick E100F dump truck automatic seat holder. This product is for the left side (passenger side on right-hand drive vehicles).

[Notes]
The coupling assembly for E100F (product code: CUP100) is sold separately.
[CUP100 E100F Coupling Assembly Details]
CL3600 Coupling 356 φ35 no groove 6 holes x 1... The shaft side coupling is welded to the shaft, so it is often not replaced.
CK0100 Coupling 356KT φ35 grooved end face keyed 6 holes x 1
825 Cap screw M10 x 60 x 6
891 Hexagon Nut M10-8 (HT) High Tensile x 6
914 Spring washer M10 x 6
872 Hexagon socket set screw M8 x 8 x 1

◆Please be sure to read
*This product is a special order item.
*This product cannot be returned. Thank you for your understanding. ⇒About cancellations and returns
