Material // Iron
Surface Treatment // Fabric
Specifications // Shaft diameter: φ35, output shaft side, Quick E100F type repair parts

[Product Introduction]
This is a coupling for repairing the Quick E100F automatic dump truck sheet hanger. This is the coupling on the reducer side. It is required when repairing or replacing the Quick E100F reducer. The shaft side coupling is installed using special bolts and nuts.

[CUP100 E100F Coupling Assembly Details]
The breakdown of the E100F coupling assembly (product code: CUP100) required when repairing or replacing the Quick reducer E100F is as follows:
CL3600 Coupling 356 φ35 no groove 6 holes x 1... The shaft side coupling is welded to the shaft, so it is often not replaced.

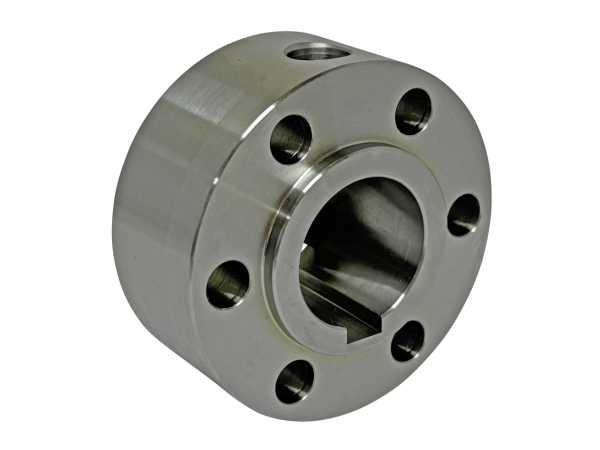

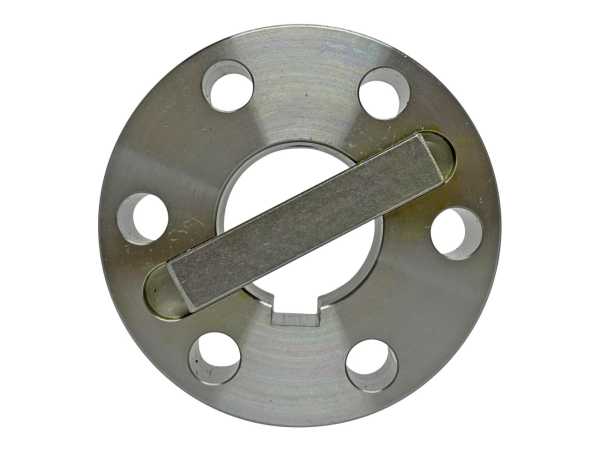

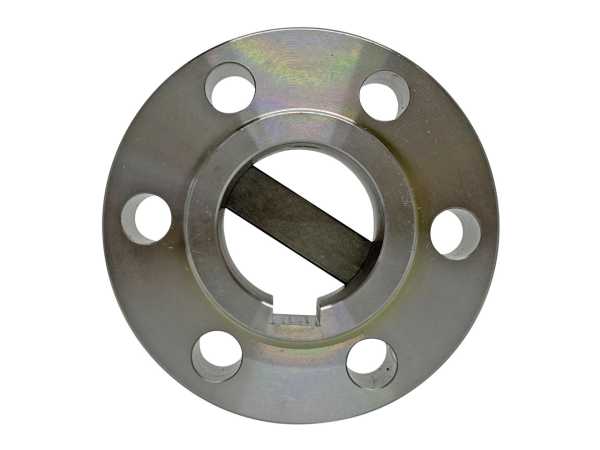

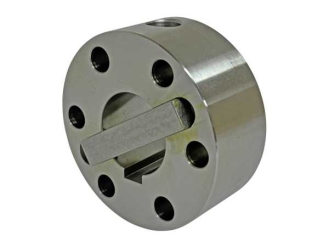

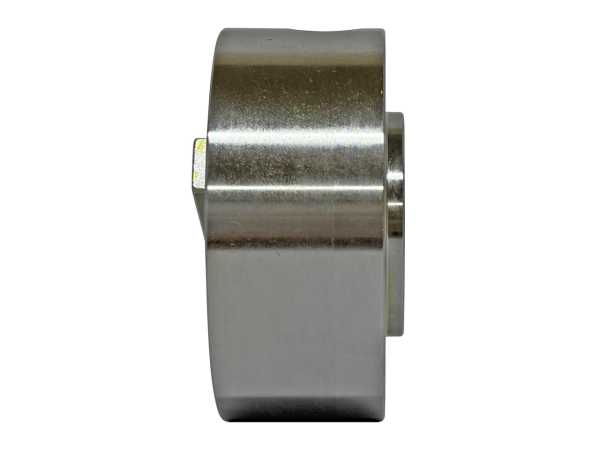

CK0100 Coupling 356KT φ35 grooved end face keyed 6 holes x 1
825 Cap screw M10 x 60 x 6
891 Hexagon Nut M10-8 (HT) High Tensile x 6
914 Spring washer M10 x 6
872 Hexagon socket set screw M8 x 8 x 1

◆Please be sure to read
*This product is a special order item.
*This product cannot be returned. Thank you for your understanding. ⇒About cancellations and returns
