Material: Steel SS400
Dimensions // Thickness: 8 x Width: 65mm, Base: 22 x 35mm, Weight: 0.567kg

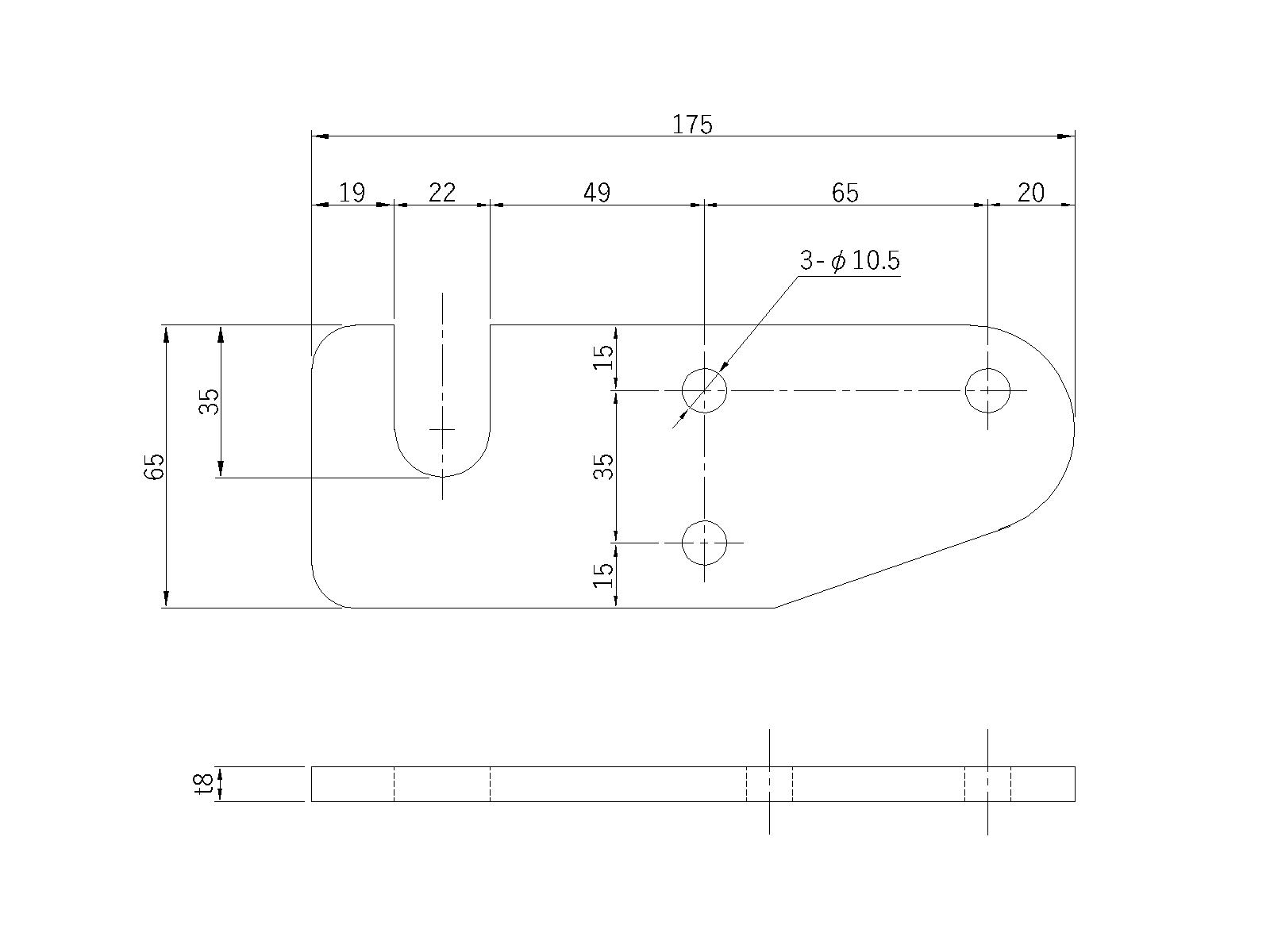

Dimensions // Block bracket 8 x 65 flat (with holes) STD type R PDF dimension drawing *All diagrams show right-handed use.
Surface treatment // Trivalent chromium plating
Specifications // For 16mm and 19mm handlebars, left-handed

[Product Description]

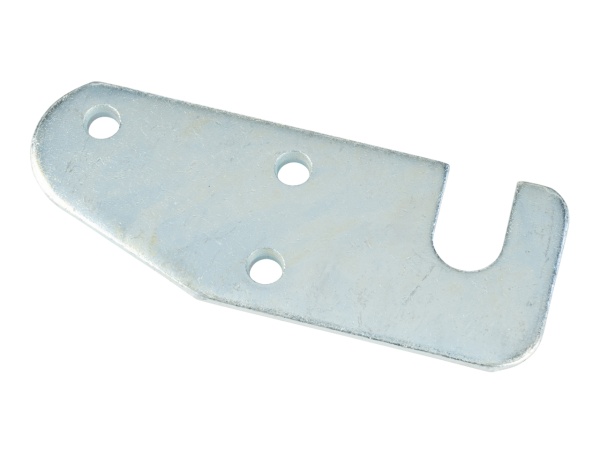

A general-purpose iron catch. The width of the cap is 22mm, and it fits 16mm and 19mm latch handles. It has three holes for 10mm bolts, making it suitable for installation on an aluminum block.

◆Please read
*This product is a special order item.
*This product cannot be returned. Thank you for your understanding. ⇒About cancellations and returns
