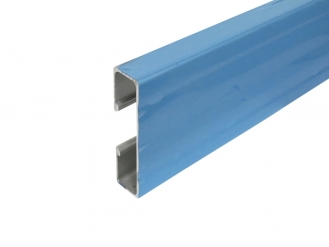

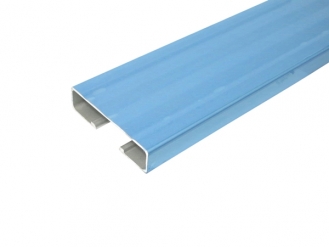

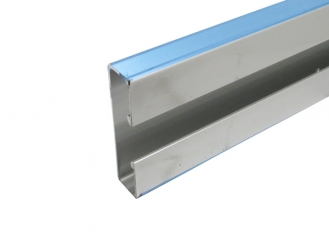

JB Aluminum Side Bumper 100H Body L = 3950

商品説明

Material // Aluminum A6N01S-T6

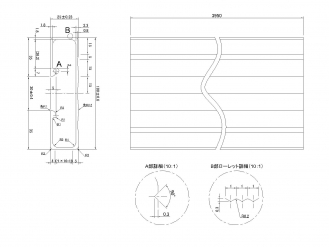

Dimensions // Height: 100 x Thickness: 25mm, Length: 3950mm, Weight: 4.76kg
Dimensions //
Surface treatment // anodized/clear
Specifications // For wheelbase

[Product Features]
This is an aluminum side bumper kit. You can configure the side bumper by combining parts. The JB Aluminum Side Bumper 100H Body L=3950 is 3950mm long, so it can be used for any wheelbase.

[ JB Aluminum Side Bumper Assembly Method ]

〇How to install the JB aluminum side bumper body and corner parts: Insert one M8 x 20 hexagon bolt into the corner part, insert it from the end of the body, cover the corner back plate (for aluminum extrusions), and secure the bolt with an M8 hexagon nut, M8 spring washer, and M8 flat washer. (※Please use JIS M8 hexagon bolt.)
〇How to install the JB aluminum side bumper body and the stay: Insert one M8 x 20 hexagon bolt into the mounting bracket, insert it from the end of the body, and secure the bolt at the stay with an M8 hexagon nut, M8 spring washer, and M8 flat washer. (*There are no holes in the stay, *Use a JIS M8 hexagon bolt.)

[Notes]
* The hexagon bolt M8 x 20, hexagon nut M8, spring washer M8, and flat washer M8 required for assembling the JB aluminum side bumper are not included. Please prepare them yourself.

[ Example of JB Aluminum Side Bumper installation on a vehicle ]

*For Hokkaido, a special shipping fee of 4,320 yen (tax included) per package will be charged in addition to the standard shipping fee of 1,050 yen (tax included).
*We cannot deliver to Okinawa or remote islands.

Due to the size, we will use Seino Transportation. Delivery may take some time.
Thank you for your understanding.

◆Please read
*This product is a special order item.
*This product cannot be returned. Thank you for your understanding. ⇒About cancellations and returns
