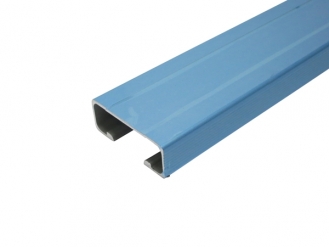

JB Aluminum Side Bumper 70H Body L = 3950

商品説明

Material // Aluminum A6N01S-T6
Dimensions // Height: 70 x Thickness: 25mm, Length: 3950mm, Weight: 3.39kg

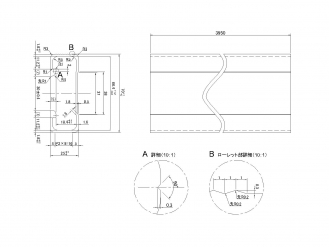

Dimensional drawing //
Surface treatment // Alumite / Clear specification // For wheelbase

[Product features]
〇Aluminum side bumper kit. You can configure the side bumper by combining the parts. JB Aluminum Side Bumper 70H Main body L = 3950 has a length of L = 3950mm, so it can be used for wheelbase.

[ How to assemble JB aluminum side bumper ]

〇 JB aluminum side bumper body and how to install the corner part Insert one hexagon bolt M8 × 20 into the corner part, insert it from the end of the body, cover the corner back plate (for extruded aluminum product), and attach the bolt to the hexagon nut M8. , Spring washer M8, flat washer M8. (* Please use JIS M8 hexagon bolts)
〇 JB aluminum side bumper body and how to install the stay Insert one hexagon bolt M8 × 20 into the mounting bracket, insert it from the end of the body, and fasten the bolt with the hexagon nut M8, spring washer M8, flat washer M8 at the stay part. please. (* There is no hole in the stay, * Please use JIS M8 hexagon bolt)

[Caution]
〇 Hexagon bolt M8 × 20, hexagon nut M8, spring washer M8, and flat washer M8 required for assembling the JB aluminum side bumper are not included. Please prepare by yourself.

[ Example of using JB aluminum side bumper Installation image on vehicle ]

* For Hokkaido, a special fare of 4,320 yen (tax included) will be charged for each unit in addition to the standard fare of 1,050 yen (tax included).
* We cannot deliver to Okinawa and remote islands.

Due to the size, Seino Transportation will use it. Delivery may take some time.
Thank you for your understanding.

◆ Please be sure to read
* This product is backordered.
* This product cannot be returned. please note that. ⇒ Cancellation / Return
