Lashing step burring type

Enlarge the image
Lashing step burring type
Lashing step burring type
Lashing step burring type

Lashing step burring type

Item #: 1100710

  • Quantity

Material // Step body: Stainless steel SUS430 2B, One-piece metal fittings: Iron Dimensions // Height: 121.5 x Width: 240 x Depth: 139 mm, Weight: 1.45 kg

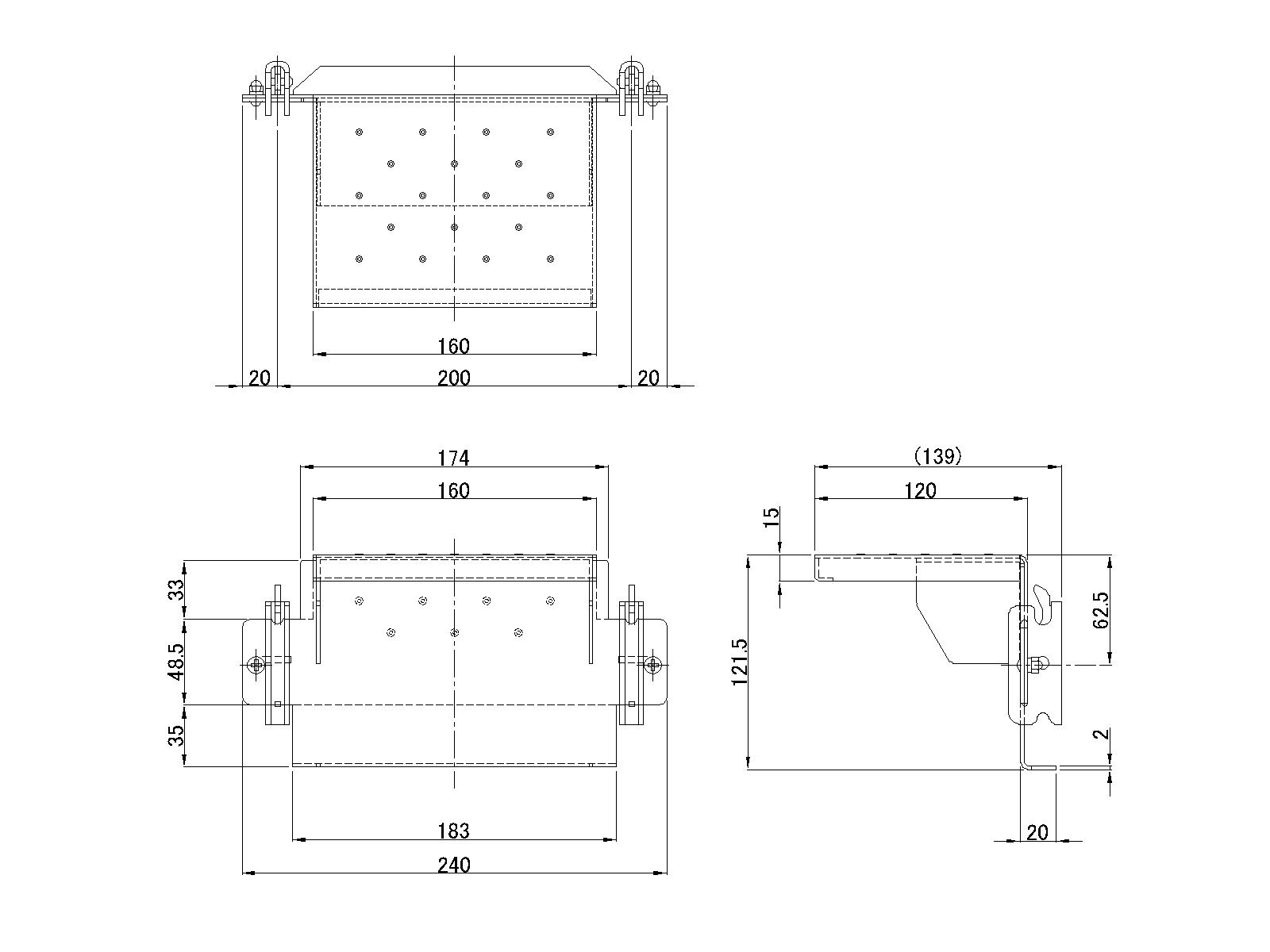

Dimensional drawing // Lashing step Burling type PDF dimensional drawing
Surface treatment // 2B
Specifications // Detachable step for exclusive use of lashing rail

【Description of item】
A lashing rail removable step that assists in getting on and off the truck bed. It is an indispensable product for safe operation and safety measures of trucks to prevent falling accidents when going up and down the loading platform. The steps are burred to prevent slipping. It can be easily attached to and detached from the lashing rail fixed to the tilt of the truck. Suitable for wing cars with lashing rails installed on the tilt .

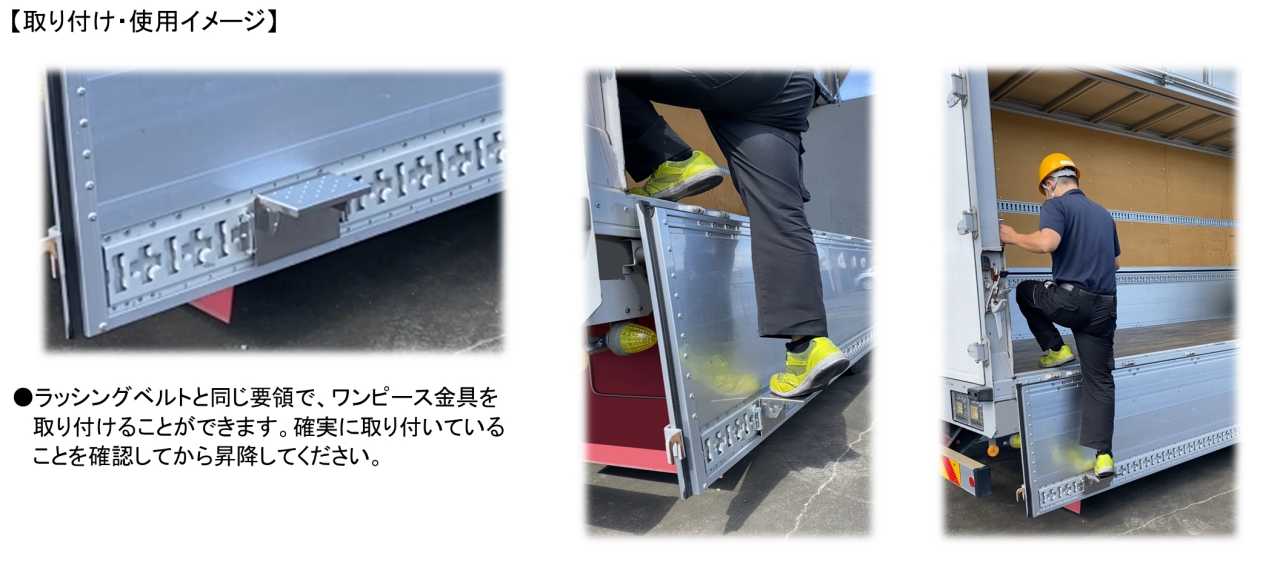

[ Lashing step Burling type installation / use image ]
Lashing step Burling type installation / use image

[Precautions for use]
* When ascending or descending to the loading platform, hold your foot on the loading platform while holding the handle, etc., and be sure to secure three-point support with your hands and feet.
* Make sure that the one-piece metal fittings are securely attached before moving up and down .
* If this product is left attached, it may become a protrusion and cause injury, accident, or property damage. Remove and store this product when not in use .
* Please wear non-slip footwear such as safety shoes.
* When going up and down, do not go up and down with your back to the loading platform.
* Do not jump or jump using the lashing step.
* Please read the attached instruction manual carefully before using. ⇒Lashing step Burling type instruction manual

◆ Please be sure to read
* This product is backordered.
* This product cannot be returned. please note that. ⇒Cancellation / Return
