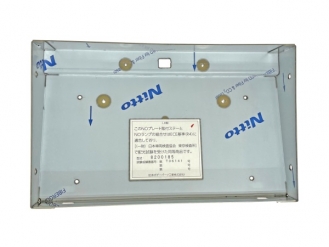

Vehicle inspection compatible number stay LSL-1014 Number lamp mounting stay BOX type for small and medium size

Enlarge the image
Vehicle inspection compatible number stay LSL-1014 Number lamp mounting stay BOX type for small and medium size

Vehicle inspection compatible number stay LSL-1014 Number lamp mounting stay BOX type for small and medium size

9,680円
Item #: 8200185

  • Quantity

Material // Stainless steel SUS304 BA
Dimensions // Height: 251.5 x Width: 410 x Thickness: 72 mm, Plate thickness: 1.5 mm, Weight: 1.92 kg

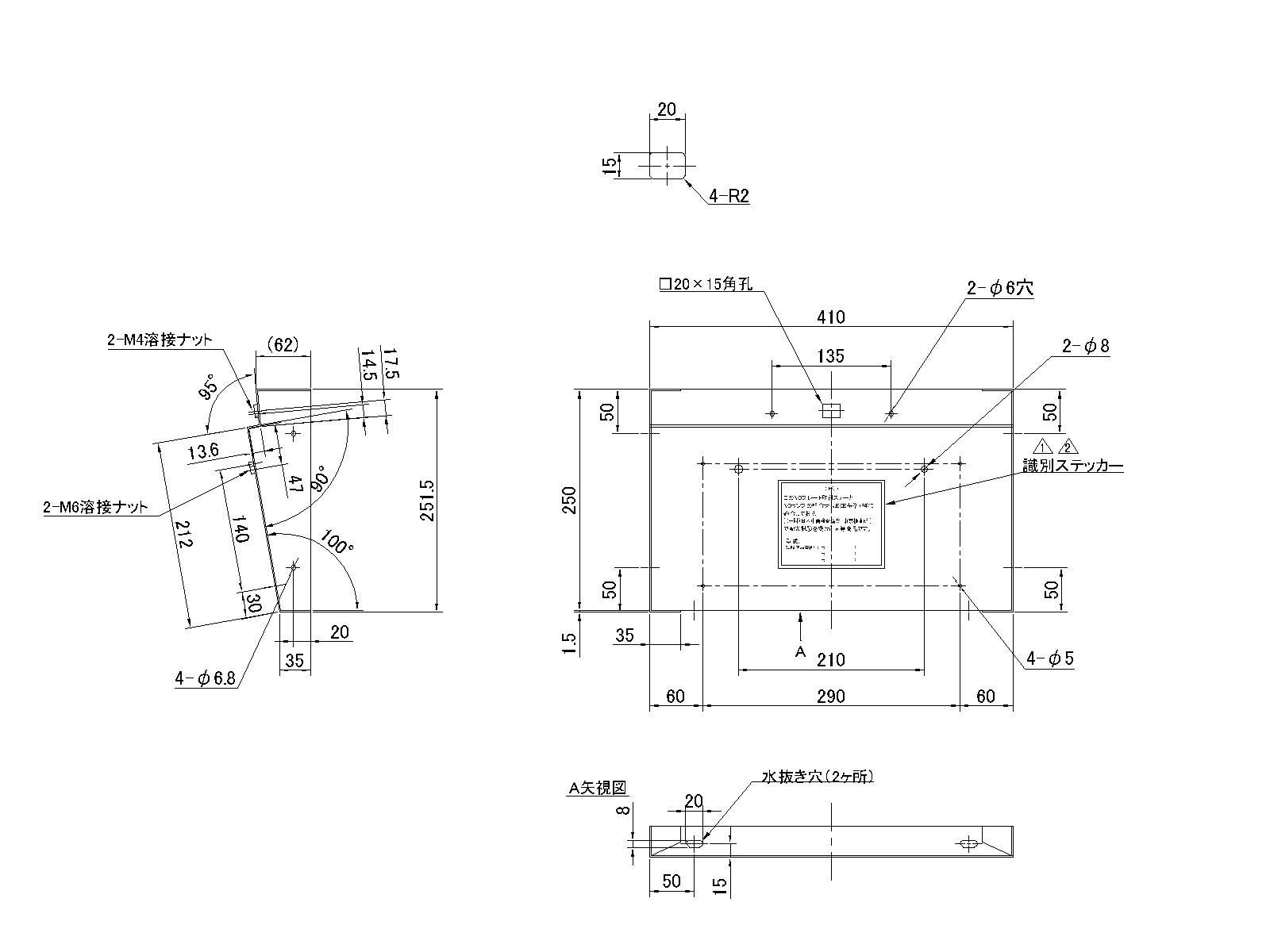

Dimensional drawing // Vehicle inspection compatible number stay LSL-1014 Number lamp mounting stay Medium size BOX type PDF dimensional drawing
Surface treatment // BA
Specifications // For small and medium size, vinyl covering for protection on the surface, vehicle inspection compatible, BOX type vertical 1 light specification

【Description of item】
Vehicles newly registered after June 15, 2020 will be required to install number lamps that meet the technical standards of ECE R4 while observing the positional relationship with the license plate specified at the time of obtaining ECE certification. .. This number lamp mounting stay complies with this standard.

【Features】
〇 It is a mounting stay that keeps the positional relationship between the license plate and the number lamp, which was determined when ECE certification was obtained.
〇 The Japan Vehicle Inspection Association measures the light distribution and incident angle and obtains a test report.

【exam result】
Vehicle inspection compatible number stay LSL-1014 Number lamp mounting stay Medium size BOX type: Test report No. T06141

[Caution]
* Can be used for new registration after June 15, 2020. Please attach the test report when you register.
* When installing on a vehicle, please install in accordance with the vehicle safety standards.

◆ Please be sure to read
* This product is backordered.
* This product cannot be returned. please note that. ⇒Cancellation / Return
