Gokata Open Middle Pillar Gusset

Enlarge the image
Gokata Open Middle Pillar Gusset
Gokata Open Middle Pillar Gusset
Gokata Open Middle Pillar Gusset

Gokata Open Middle Pillar Gusset

6,600円
Item #: 0550002

  • Quantity

Material // Iron SPHC
Dimensions // width: 500 x height: 260 x thickness: 24 mm, weight:5.08kg

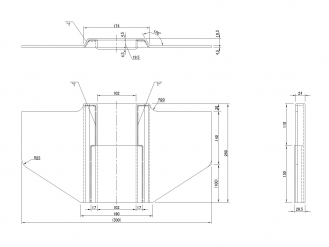

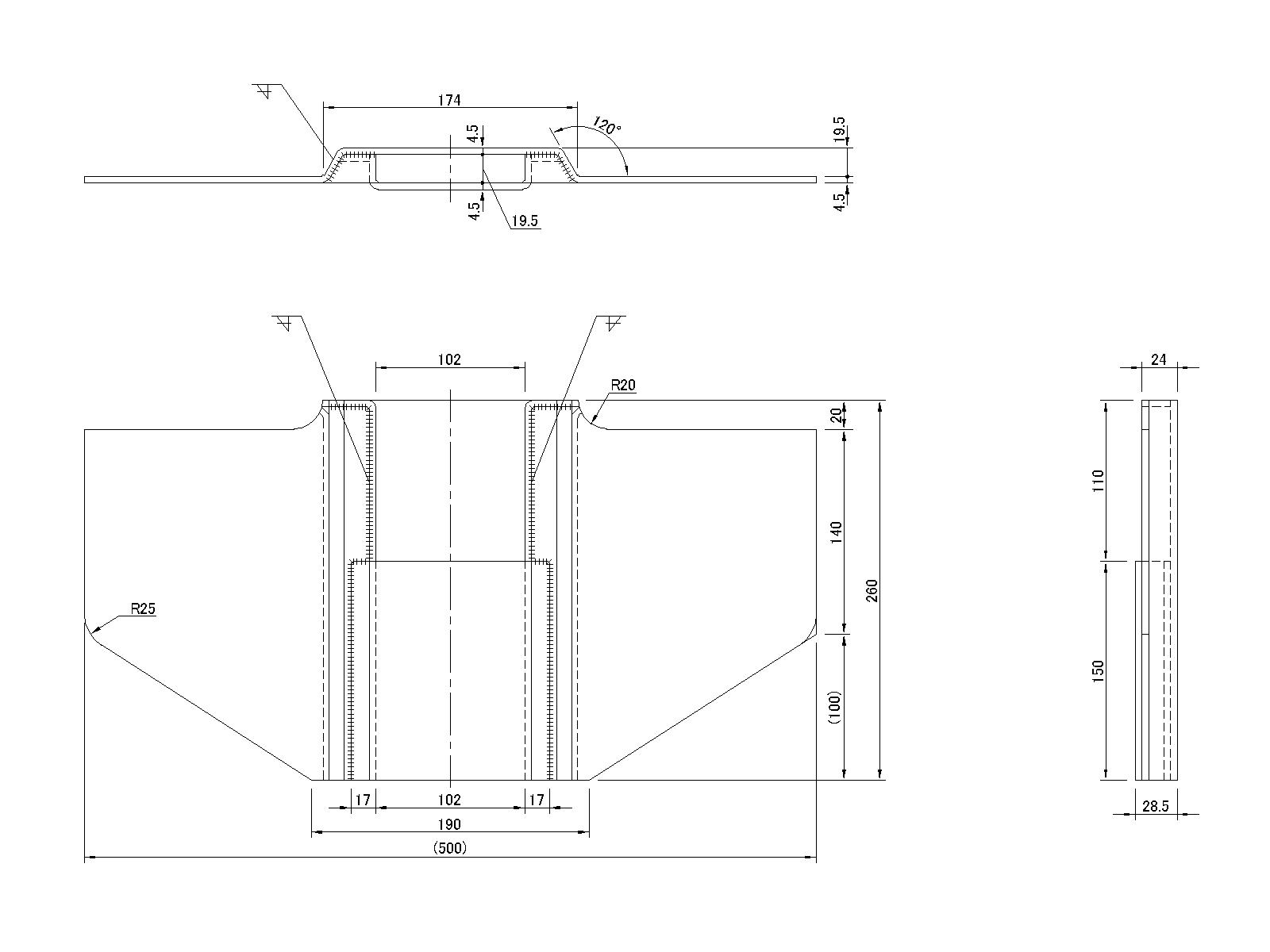

Dimensional drawing // PDF drawing of gusset for Gohei Kai middle pillar
Surface treatment // Red primer coating specification // Gogo open middle column


【Description of item】

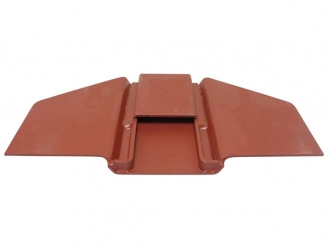

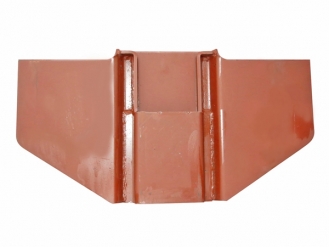

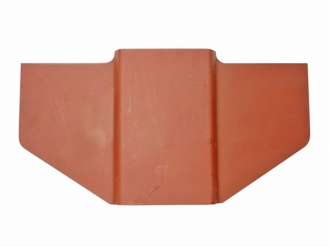

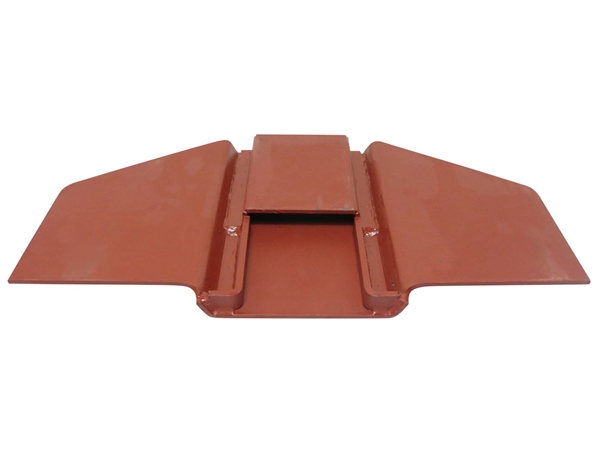

It is a gusset (column support) for standing a pillar in the middle of the tilt when opening the tilt of the truck in five directions. It can be used to manufacture truck bodies that require intermediate pillars, such as propane gas cylinder trucks.


【Notes】
■ Please confirm from the drawing whether or not it meets the specifications for standing the intermediate pillar on the tilt.


◆ Please be sure to read
* This product is back-ordered.
* This product cannot be returned. please note that. ⇒ About cancellation / return
