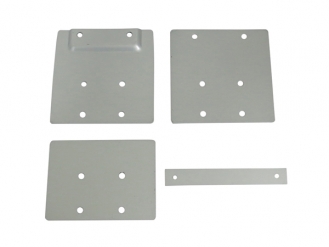

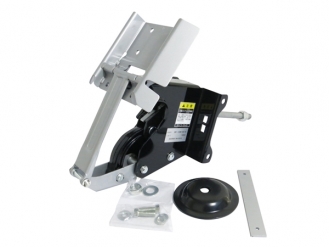

Seiko rack body SRN700 A200KA SRN7-1200N0-36 for wooden finished tilt

Enlarge the image
Seiko rack body SRN700 A200KA SRN7-1200N0-36 for wooden finished tilt
Seiko rack body SRN700 A200KA SRN7-1200N0-36 for wooden finished tilt
Seiko rack body SRN700 A200KA SRN7-1200N0-36 for wooden finished tilt

Seiko rack body SRN700 A200KA SRN7-1200N0-36 for wooden finished tilt

21,230円
Item #: 0960734

  • Quantity

Material // Iron size // Arm length: 200mm
Specifications // For wooden finished tilt: Canter, Elf (* Pubco), Dutro, Ranger * [Confirm model selection]


【Description of item】
It is a Seiko rack developed for a wooden finished Aori manufactured by a manufacturer. In the past, when attaching a Seiko rack to a wooden finished tilt made by a manufacturer, it was necessary to make a pedestal on the tilt side and make the tilt surface flat. This product is designed so that it can be attached directly to the camera without the hassle. Available models are limited, so be sure to check "About model selection" at the bottom.

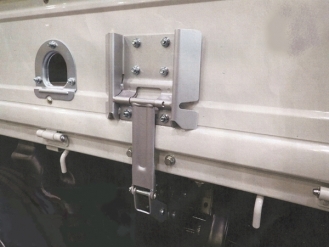

[ Comparison of installation images for existing Seiko rack and wooden finished tilt ]
Example of use of Seiko Rack SRC type Image of installation on a wooden finished tilt made by a manufacturer Seiko rack SRN700 Example of use for completed wooden tilt
Image of SRC type wooden installation Installation image for SRN700 wooden finished tilt

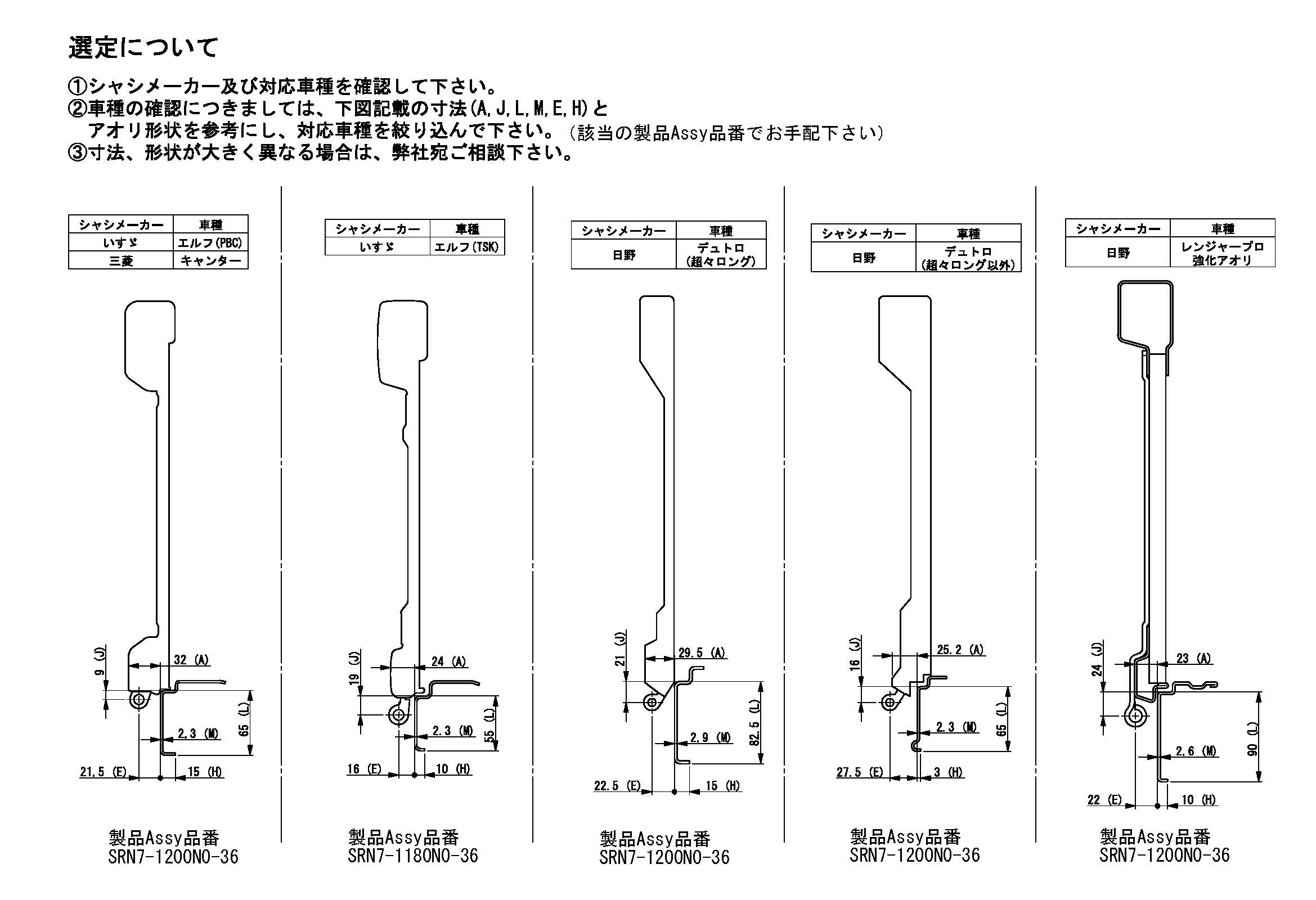

[ About model selection ]
Seiko Rack SRN700 Selection of model for finished wooden tilt
を ク リ ッ ク Click the above image to check the chassis maker and compatible models. When checking the model, narrow down the model by referring to the dimensions (A, J, L, M, E, H) and the shape of the tilt in the image.
ら After confirming the model, select the applicable model from the product Assy part number. The following two models.
Product Assy part number: SRN7-1200N0-36
Product Assy part number: SRN7-1180N0-36
〇PDF of "Model selection" and "Installation manual" made by manufacturer. ⇒ Seiko Rack SRN700 Model selection and installation manual for finished wooden tilt


[Notes]
* Compatible springs are SRN720 / SRN710 only. (SRN750 cannot be used)


◆ Please read
* This product is an order product.
* This product cannot be returned. please note that. ⇒ About cancellation and return
