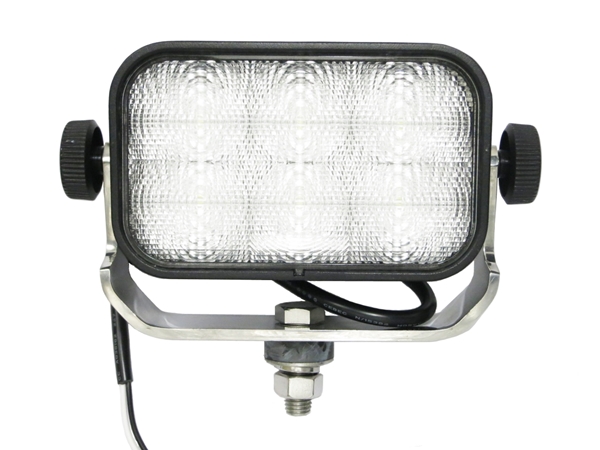

LSL-1013B (12/24 / 48V shared) with LED search light switch

Enlarge the image
LSL-1013B (12/24 / 48V shared) with LED search light switch
LSL-1013B (12/24 / 48V shared) with LED search light switch
LSL-1013B (12/24 / 48V shared) with LED search light switch
LSL-1013B (12/24 / 48V shared) with LED search light switch
LSL-1013B (12/24 / 48V shared) with LED search light switch
LSL-1013B (12/24 / 48V shared) with LED search light switch

LSL-1013B (12/24 / 48V shared) with LED search light switch

20,350円
Item #: 9893343
JAN: 4909002933438

  • Quantity

Material / / Body: aluminum die cast, lens: PMMA (transparent)
Dimensions / / body of the lamp / height: 95 × width: 152 × depth: 75.0 mm, wiring length: 400 mm, weight: 1.40 kg

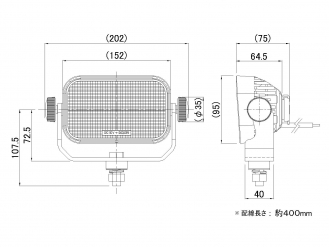

Dimension drawing //
Surface treatment / / black paint
Specifications / / DC12 / 24 / 48V common use, power consumption: 40W (LED element: 10W × 6), rated current: 12V-3.4A 24V-1.7A, operating environment temperature: -20 ° C ~ 50 ° C, luminous flux: 2340 Lumens, waterproof performance: IP67, with a stay
JAN code: 4909002933438


[Product Features]
-Equipped with six 10W high power LED made of OSRAM (power consumption 40W), it exhibits 2340 lumens in the entire lamp. It is a very bright searchlight.
● With the function of special lens cut, it illuminates to a wide area far.
-Wreckers, rough terrain cranes, fire engines, from packer cars to ships, suitable for applications and vehicles that require light intensity at night work.
● The rated input voltage can be used in common with DC12V, DC24V and DC48V.
● Waterproof performance is IP67.
● The body uses aluminum alloy, so it excels in heat dissipation and reduces the heat damage to the LED and the circuit board.
● It is possible to turn on and off the lamp body with a waterproof switch with a protective cap.
● The mounting bracket and bolt are made of stainless steel that resists rusting.

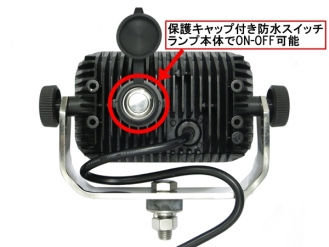

Waterproof switch with protective cap
Waterproof switch with protective cap enables ON-OFF in lamp body


【Notes on installation】
※ Be sure to use a waterproof heat-shrinkable tube, waterproof butyl tape, etc. for waterproofing at the wire connection section.
※ Condensation may occur on the inside of the lens due to the temperature difference between the inside of the lamp and the outside air.
※ Fine noise may occur from the lamp and wiring. Check the operation of equipment operated by radio waves such as radio control before use.


◆ Please read
※ This product is a backordered item.
※ This product is non-returnable. please note that. ⇒ cancellation / return
