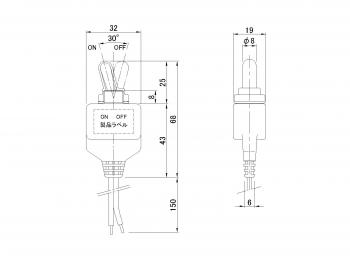

Dimensions//Body/Width: 32 x Height: 68 x Thickness: 19mm, Cord Length: 150mm

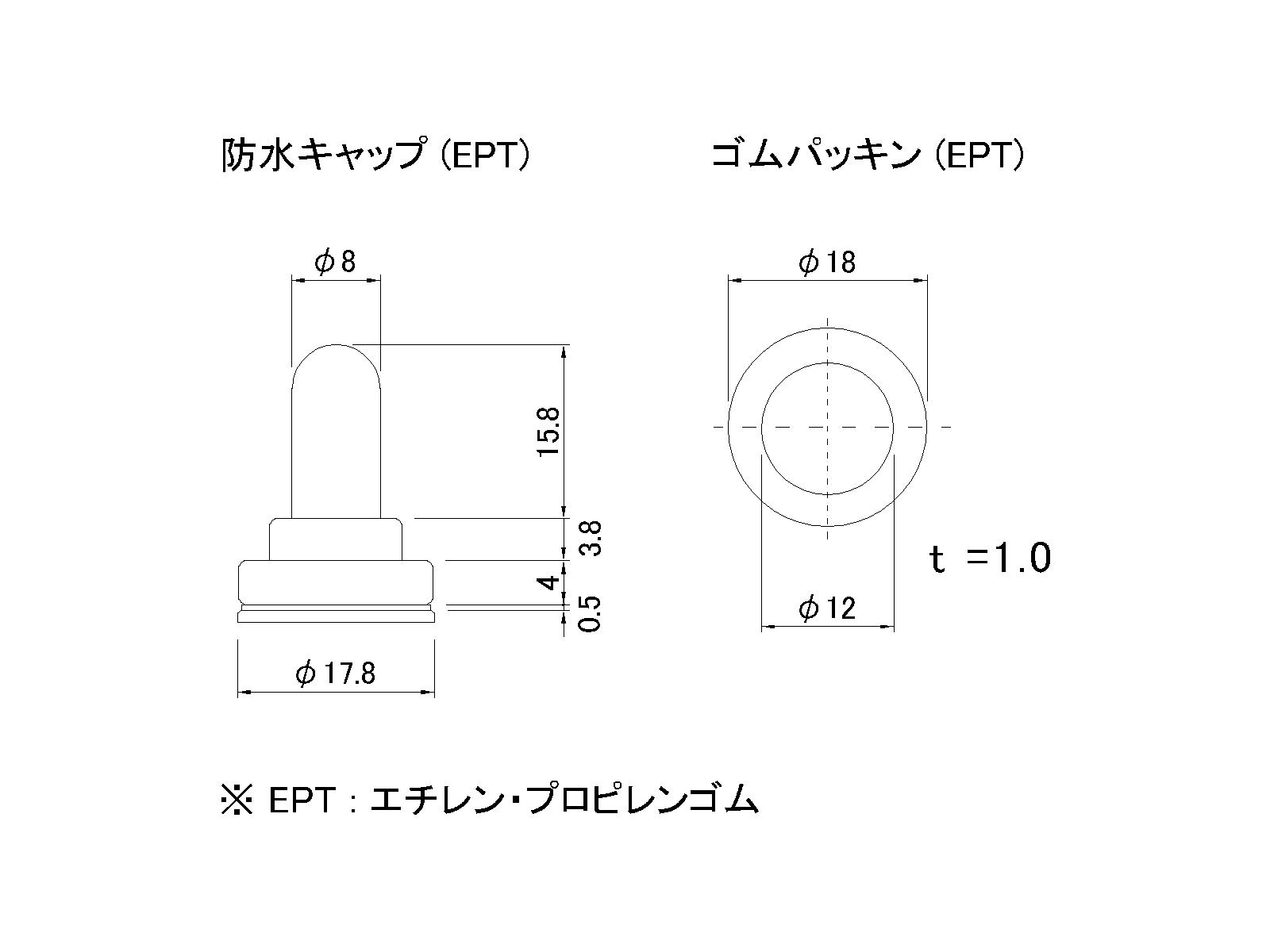

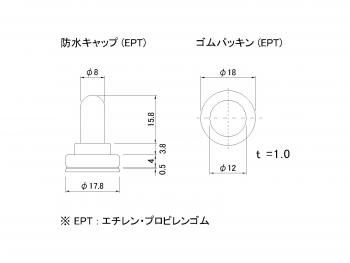

Dimensional drawing //
Specifications//Rating: DC12V15A, DC24V10A, Switching circuit: ON-OFF (2P), Operating temperature range: -25 to +70°C (non-freezing), Degree of protection: IP67 equivalent
[Product Features]

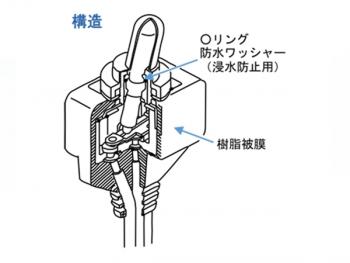

〇The main body is molded with a resin coating to make it waterproof.
[Precautions for use]

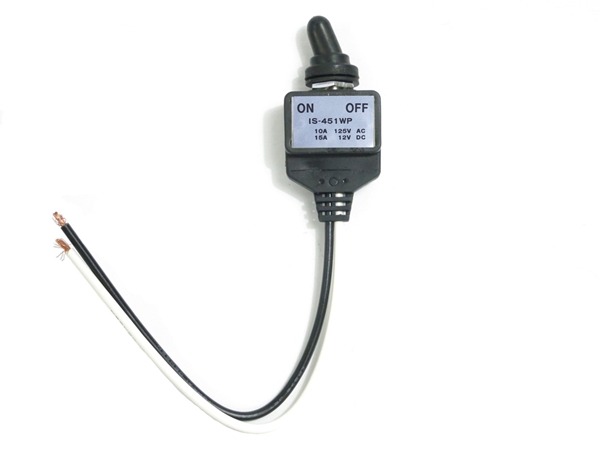

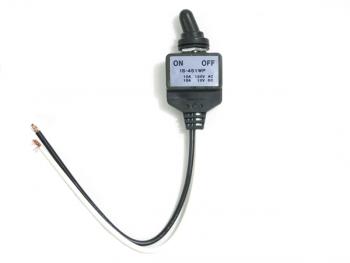

* Connect the wiring (white) of this product to the + power supply of the vehicle, and connect the wiring (black) to the vehicle ground.
〇 Please check the specifications of the electrical equipment to be installed before purchasing.
〇Be sure to prepare a relay for large-capacity current.
〇 Although it is waterproof, it cannot be used in extreme environments because it is an electrical component.
