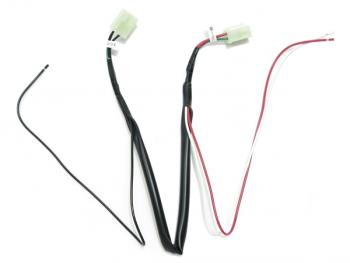

Switching harness in JB cab FD-12527 For switch · relay

Enlarge the image

Switching harness in JB cab FD-12527 For switch · relay

Item #: 6147410

  • Quantity

Dimensions // Harness length: 500 mm
Specification // JB cab switch series and harness conforming to our general-purpose relay ※ Please do not use for other manufacturer's products.

※ It is a harness connecting the switch series in JB cab and general-purpose relay ACA-1223 · ACA-1213. Compared to conventional 4-wire harness switch harness JB-503, you can save time of connection.

【Wiring method】
Red wire: Power supply +
White line: Electrical component +
Black line: Earth -
