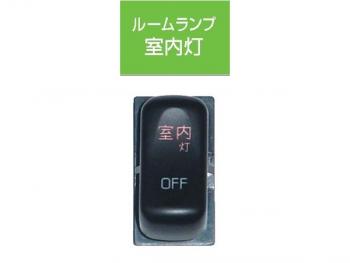

Interior light switch in the cab for Fuso JB-5504

商品説明

Dimensions // Width: 22.8 x Height: 41.8 mm
Dimensions //
Wiring example //
Specifications // Rating: DC24V-10A, for Fuso (4t/large) *Large (from May 2017) and medium (from October 2019): Cannot be installed, Generation Canter 24V vehicles must be used with bracket JB-502
*Cannot be installed on large Fuso vehicles (from May 2017) or medium Fuso vehicles (from October 2019).

○To connect, use two of these harnesses and one relay for each switch.
JB Cab Switch Harness, 4-Wire, JB-503
General-purpose relay ACA1223 (DC24V)
For 24V Generation Canter vehicles manufactured from July 2002 to October 2010, please use the following base bracket together with the switch.
In-cab switch bracket for Generation Canter

[Installation precautions]
● Always use a relay for the switch inside the cab.
●Make sure that there is no coil load (large capacity motor, solenoid, coil, clutch, etc.).
*Please check the [wiring example].
*Cannot be used with Bluetec Canter models manufactured from November 2010 onwards.
