Block Hinge J6 Outer Groove Side 2mm Step with Pilot Hole R Plated

商品説明

Material: Steel SS400

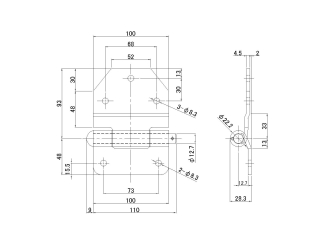

Dimensions // Plate thickness: 4.5mm, Pin diameter: φ12.7mm, Weight: 0.72kg
Dimensions // *All illustrations show left-handed use.
Surface treatment//Trivalent plating
Specifications: For right side, with pilot hole, for aluminum block with outer groove and step

[Product Introduction]
This is an external groove type steel hinge suitable for mounting aluminum gates. It is used when the aluminum gate is a straight type with a floor frame. The lower side of the lower rail of the aluminum block is dedicated to the stepped type (e.g. Nikkei aluminum block, UACJ aluminum block). This is a hinge with a φ12.7 hinge pin. An improvement has been made from the conventional J6 hinge to further reduce interference between the floor frame and the aluminum gate drip. You can also choose between a pilot hole and no pilot hole. This product is a type with pilot holes. The mounting hole pitch has also been changed from the conventional J6 hinge, so it is not compatible.

[Notes]
The mounting hole pitch and other details have been changed from the conventional J6 hinge, so it is not compatible.
[Conventional J6 hinge]
Block hinge J6 Outer groove side step R plating
Block hinge J6 outer groove side step L plating

◆Please read
*This product is a special order item.
*This product cannot be returned. Thank you for your understanding. ⇒About cancellations and returns
