Material: Iron
Dimensions: Box: Height 125 x Length 650 mm (4 pieces/1 set), Weight: 114 kg; Walking stick: Thickness 36 x Width 105 x Length: 1900 mm (4 pieces/1 set), Weight: 164 kg; Short chain: Diameter 9 x Length 3500 mm, 1 unit (4 boxes + 4 walking sticks), Weight: 278 kg
Surface treatment // Painting
Specifications // For 6t trucks, *Please provide the base blocks yourself. Specifications: Width 120 x Height 144 x Length [Cargo bed width - 380mm]

[Product Description]
Due to the shortage and price increases of imported timber caused by the Wood Shock, domestically produced timber is being re-evaluated. The Toda-style stick is a log securing device that can be mounted on a flatbed timber transport vehicle.

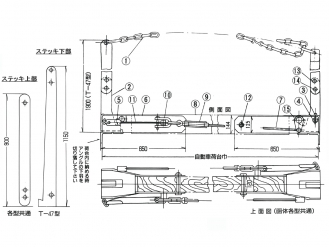

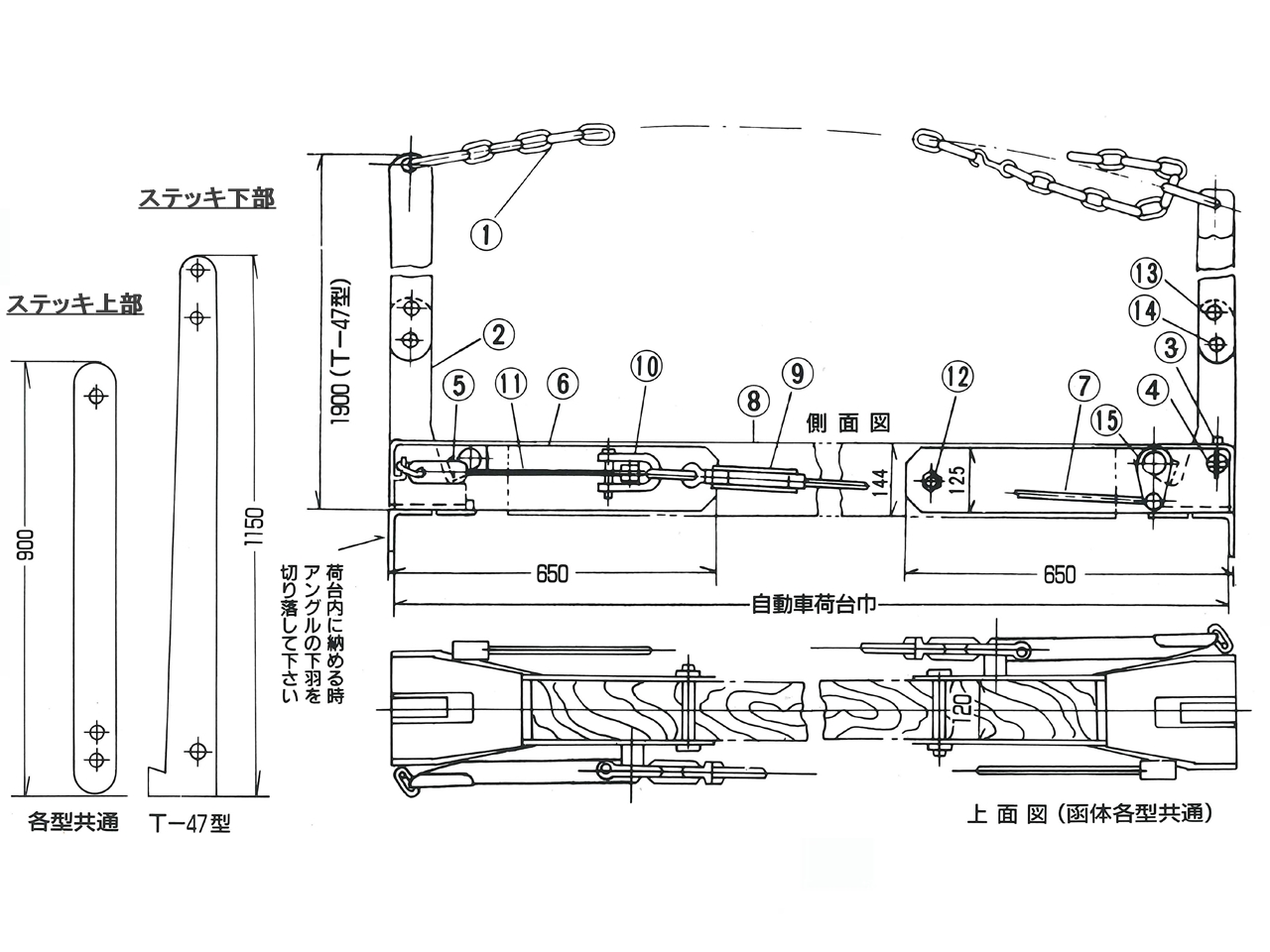

[ Product configuration, dimensions, and parts details for the Toda-style walking stick T-47 model ]

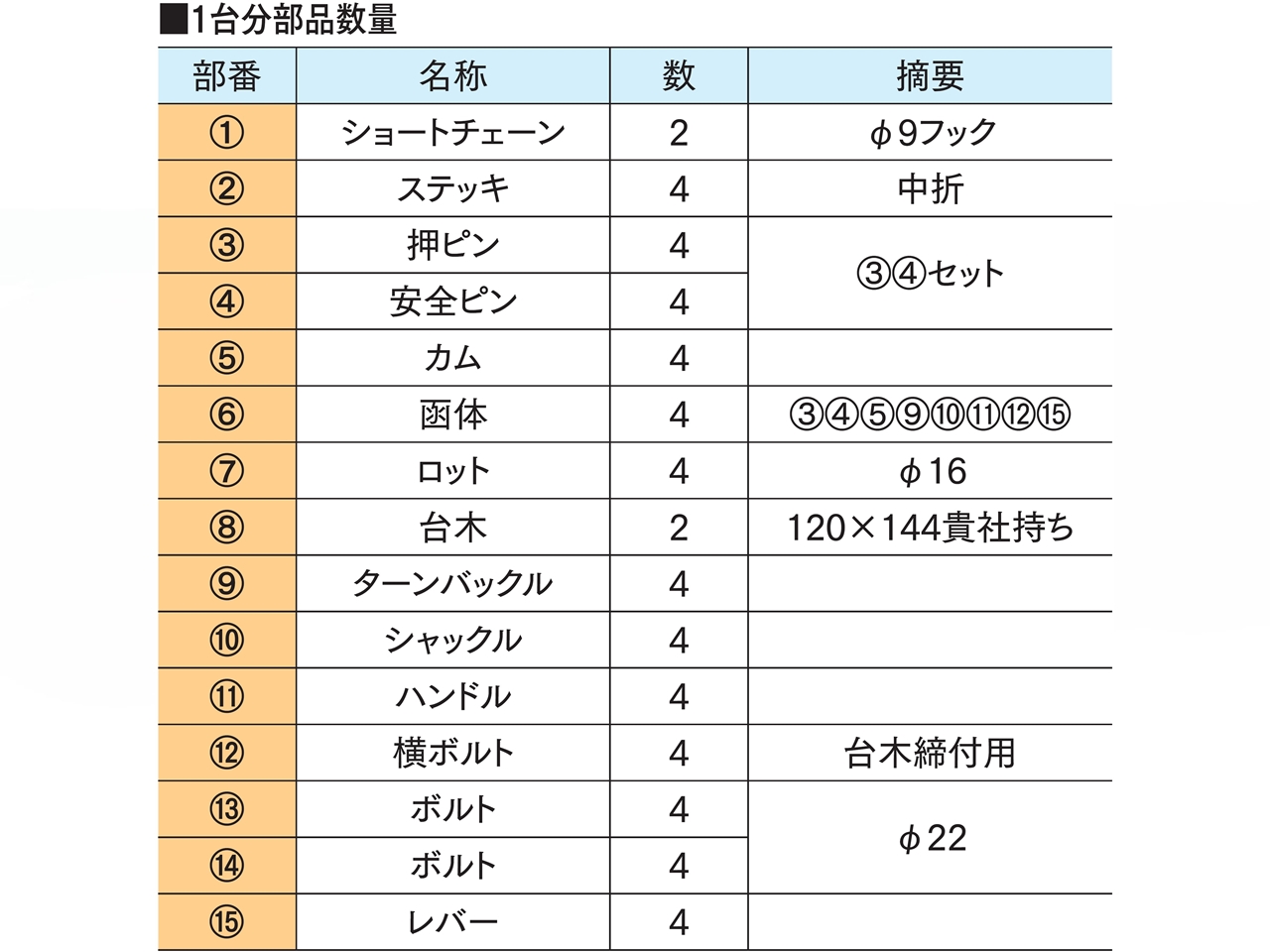

[Product configuration and dimensions of the T-47 model]	[T-47 Type Parts List]

[Important Notes]
*The base plate is not included with the product. Please have the mounting or installation company provide it.
Reference base specifications: Width 120 x Height 144 x Length [Loading platform width - 380 mm]
*When installing on a vehicle, please install in accordance with vehicle safety standards.

◆Please read carefully
*This product cannot be canceled, exchanged, or returned after ordering. Thank you for your understanding.
⇒ About cancellations and returns

Write a review!
