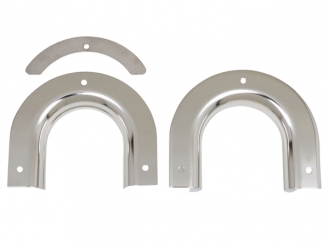

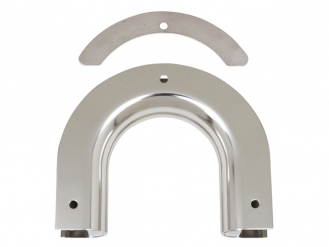

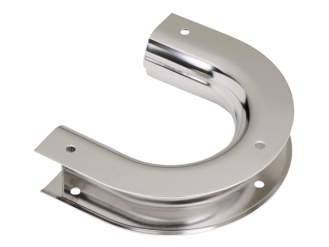

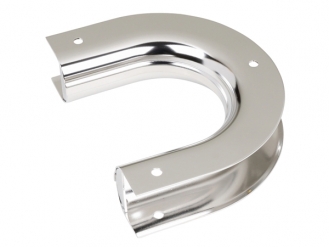

Stainless rope through frame Aluminum block No step required (no cut) Electroless polishing with spacer

Enlarge the image
Stainless rope through frame Aluminum block No step required (no cut) Electroless polishing with spacer
Stainless rope through frame Aluminum block No step required (no cut) Electroless polishing with spacer
Stainless rope through frame Aluminum block No step required (no cut) Electroless polishing with spacer
Stainless rope through frame Aluminum block No step required (no cut) Electroless polishing with spacer

Stainless rope through frame Aluminum block No step required (no cut) Electroless polishing with spacer

5,060円
Item #: 0400040

  • Quantity

Material // Stainless steel SUS304 2B
Dimensions // Weight: 0.434kg

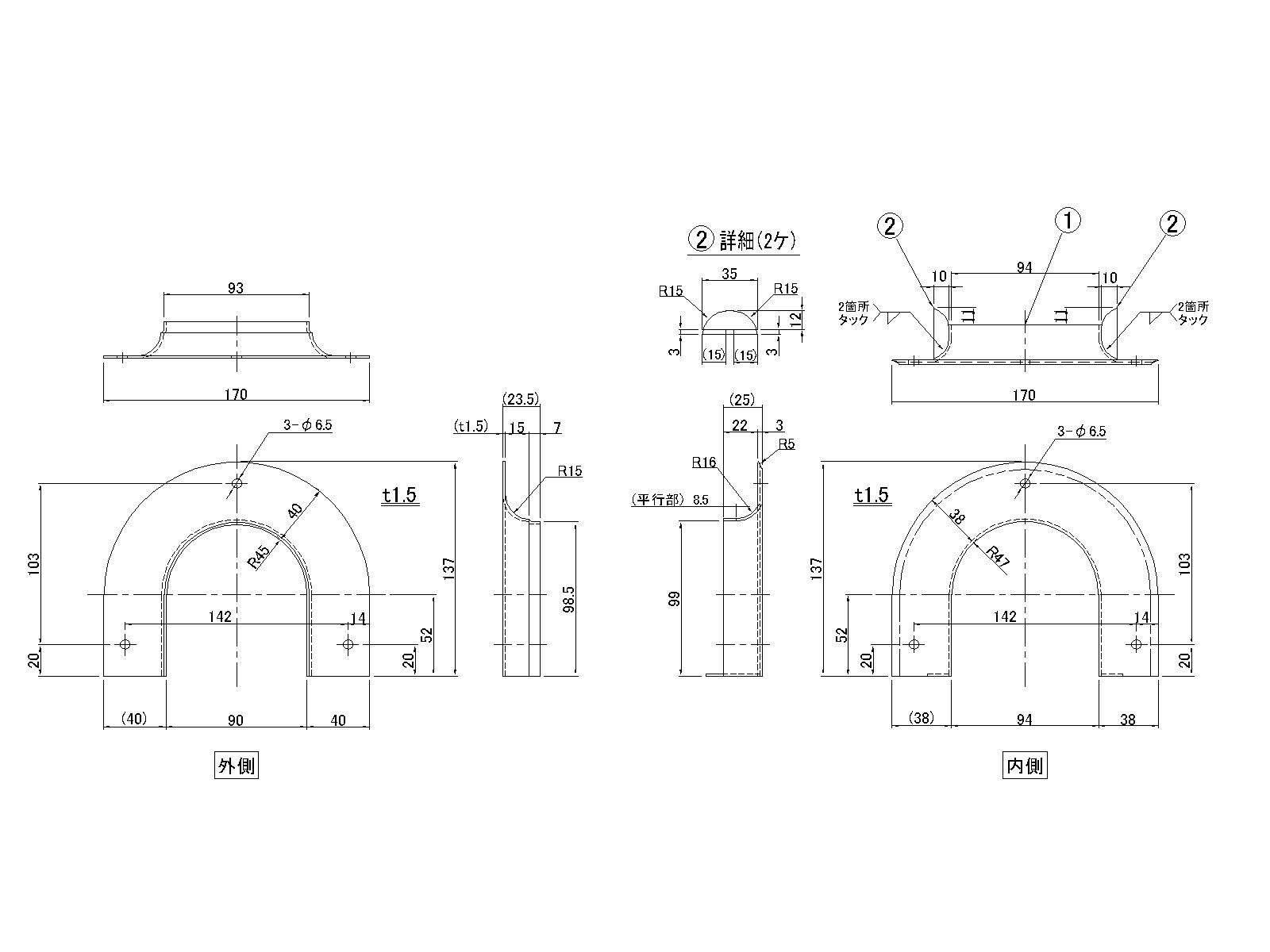

Dimensional drawing // Stainless rope through frame Aluminum block No step required (no cut) PDF dimensional drawing of electropolishing
Surface treatment // Electropolishing specification // Aluminum block stepless (corresponding thickness 35 mm * thin not possible), double-sided set, with spacer

【Description of item】
Rope threading frame for aluminum blocks. It is a type that makes a hole from the floor of the truck. It is suitable for low tilting such as loading vehicles and construction equipment carriers. The lower side of the lower rail of the aluminum block is exclusively for the stepless type. (Example: Mitsubishi Aluminum) The surface of this product is electropolished and glossy.

[Caution]
* 2 Since the B material is electropolished, there are some scratches on the surface. This scratch is unavoidable in manufacturing. please note that.

◆ Please be sure to read
* This product is backordered.
* This product cannot be returned. please note that. ⇒Cancellation / Return
