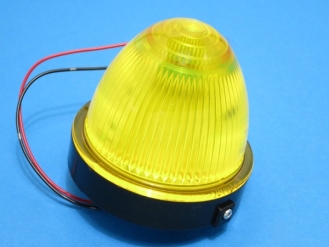

LED acrylic marker shine 24V yellow (black base) SM-10A

商品説明

Material: Lens: PMMA (acrylic), Base: PP resin
Dimensions//Diameter: φ83.5 x Height: 76mm, Mounting pitch: 60mm, Weight: 0.11kg
Dimensions //
Specifications: DC24V, current consumption: 0.021A, 4 LEDs, yellow, operating temperature range: -30℃ to +60℃

[Product Features]
This LED marker lamp has an acrylic lens that is shock-resistant and shatter-resistant. It is lighter than a glass lens.

[Specification changes]
* This product is a minor change of the LED Acrylic Marker SM-8A, 24V Yellow (Black Base) . There are no changes to the appearance or dimensions.
The specification changes are listed below.
〇Model: SM-8A → SM-10A
LED specifications: Chip type (CREE) x 6, maximum brightness: 9cd → Chip type (CREE) x 4, maximum brightness: 10cd
○ Surge protection: None → Equipped with surge protection components (varistors) ○ Circuit protection: None → FUSU
〇Power consumption: 0.48W → 0.5W

[Notes]
* Be sure to waterproof the wiring connections using waterproof heat shrink tubing, waterproof butyl tape, etc.
*Condensation may occur on the inside of the lens due to the temperature difference between inside the lamp and the outside air.
