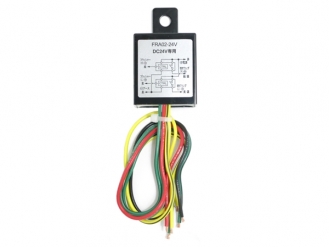

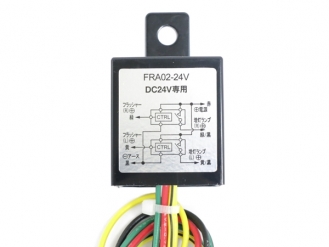

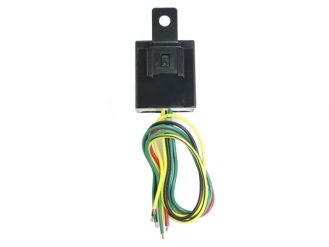

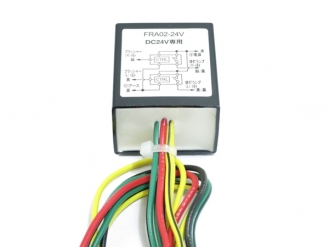

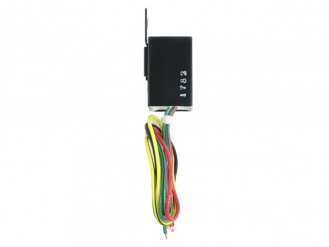

JB Intermediate side lamp unit FRA02-24V Waterproof 24V

Enlarge the image
JB Intermediate side lamp unit FRA02-24V Waterproof 24V
JB Intermediate side lamp unit FRA02-24V Waterproof 24V
JB Intermediate side lamp unit FRA02-24V Waterproof 24V
JB Intermediate side lamp unit FRA02-24V Waterproof 24V
JB Intermediate side lamp unit FRA02-24V Waterproof 24V

JB Intermediate side lamp unit FRA02-24V Waterproof 24V

3,850円
Item #: 5450672

  • Quantity

Material // Case: PA6, Bracket: SPC
Dimensions // body / height: 40 x width: 35 x depth: 25 mm, wiring length: about 200 mm, weight: 0.071 kg

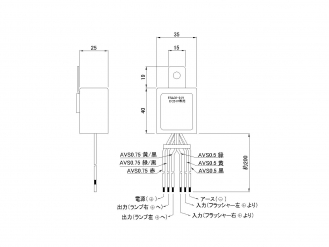

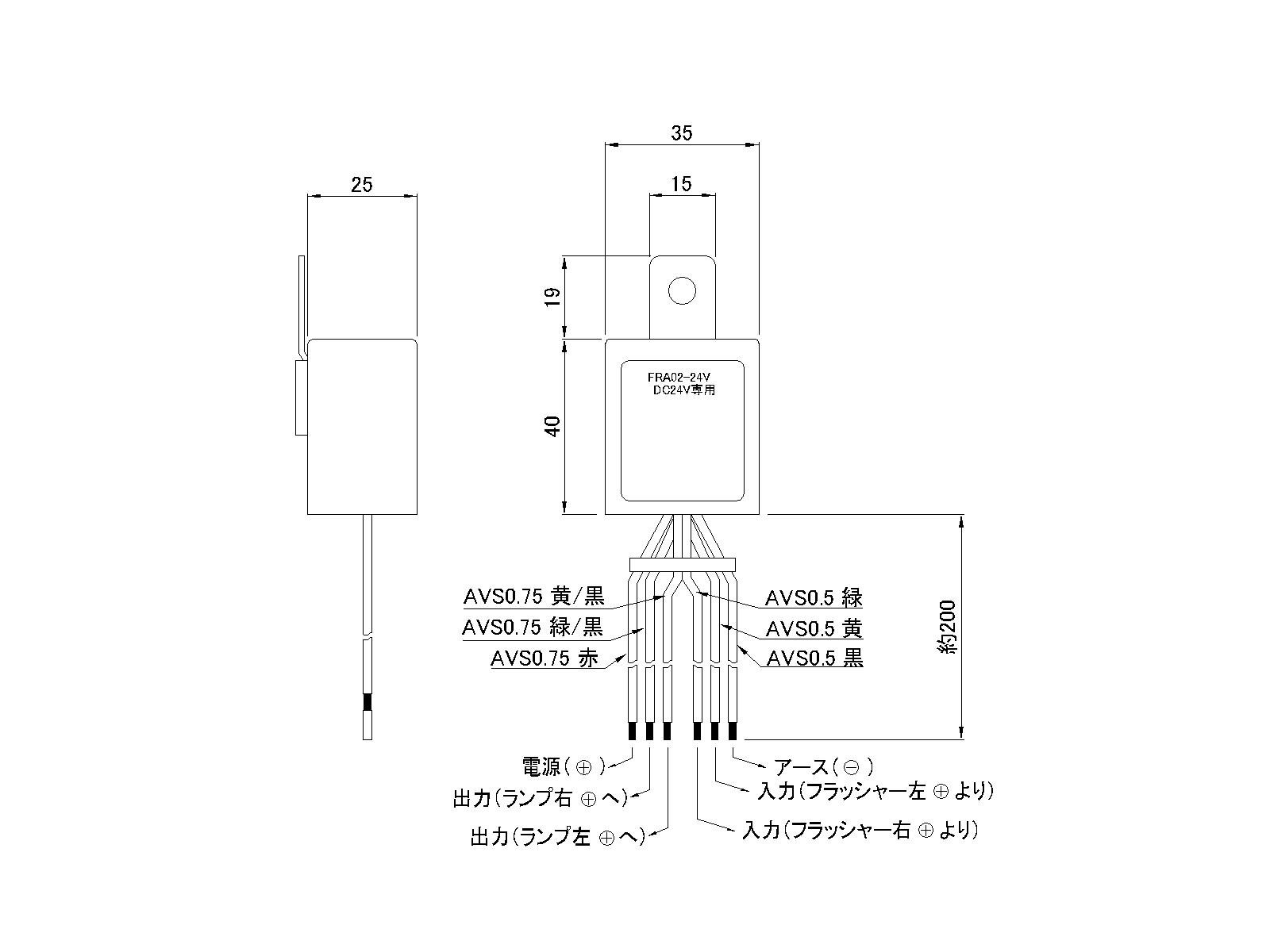

Dimensions /// JB Intermediate side lamp unit FRA02-24V Waterproof 24V PDF dimension drawing
Specifications // Rated voltage: 24 VDC, Allowable load capacity: 21 W to 25 W / 24 VDC (one side), Operating ambient temperature: -20 ℃ to 60 ℃, waterproof, 2 left / right control / per piece


【Description of item】
If an intermediate side lamp (auxiliary turn signal) is additionally installed on the truck in parallel with the existing turn signal, the lamp will not turn into a hyphen even if the light bulb of the turn signal is cut off. In such a state, it is not suitable for vehicle inspection. This product is a unit that allows the "operation status display device" of the turn signal to function normally when the intermediate side lamp is additionally installed.
One product can control the left and right auxiliary direction indicators (two in total).


[Electrical characteristics]
〇One end of the plus control bulb is connected to the vehicle body (-side).
This unit blinks by opening and closing the (+) side of the bulb.


[Notes]
Be sure to equip the + 24V power (always power) input wire with a 3A fuse.
Use for purposes other than the extension of auxiliary direction indicators is prohibited.
Make sure that the unit body is securely fixed to the metal part.
Do not install the main unit in places where heat radiation is poor.
Please note that the use of the genuine additional flasher unit may shorten the blinking cycle of the turn signal indicator and prevent the operation status display device from functioning properly.
Connect the wiring cord correctly.


◆ Please read
* This product is an order product.
* This product cannot be returned. please note that. ⇒ About cancellation and return
