Anti-slip fittings facing type L = 145 with holes P = 78 Hino Large (from May 2017)

商品説明

Material // SS400
Dimensions // Width: 66 x Length: 145mm, Thickness: 66mm, Thickness: Bolt receiving part 9mm / Body 6mm, Non-slip bolt hole: 21.5-31.5mm Slot hole, Chassis hole: 2-φ15mm, Pitch 78mm, Weight : 1.05kg

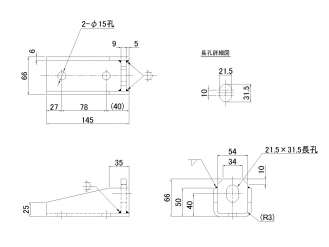

Dimension drawing //
Surface treatment // Black paint specification // Fits the hole pitch of Hino large-scale (from May 2017) * Please install according to the bodywork manual

[Product Features]

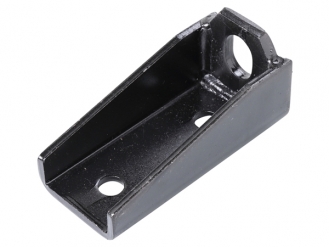

Hino large size (from May 2017) chassis is prohibited from drilling. This product is a non-slip bracket (slip bolt receiver) that is compatible with the hole pitch of Hino Large (from May 2017) chassis and that can be bolted to the chassis. The P = 78 type is for attaching diagonally to the chassis.

[ Anti-slip fitting, facing type L = 145 with holes, installation example of P = 60 and P = 78 for Hino Large Size (from May 2017) ]

〇P = 60 type is for vertical installation that is installed perpendicular to the chassis.
〇P = 78 type is for attaching diagonally to the chassis.
