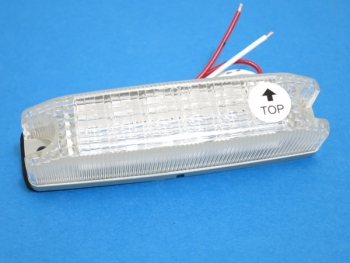

ATS-104 LED car high light / side lamp clear / green 24V

Enlarge the image
ATS-104 LED car high light / side lamp clear / green 24V

ATS-104 LED car high light / side lamp clear / green 24V

2,860円
Item #: 6778516

  • Quantity

Material // Lens: Acrylic, Base: ABS
Dimensions // length: 110 x width: 28 x height: 28 mm, mounting pitch: 96 mm, weight: 0.06 kg
Specifications // 24VDC, Lens: Clear / LED: Green (6 LEDs), with packing

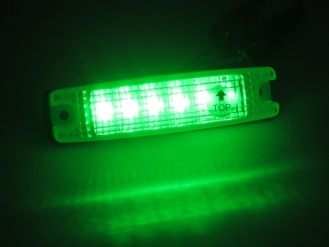

[ATS-104 LED car high light / side lamp clear / green 24V video when lit (15 seconds / no sound)]


【Product introduction】
It is a full-half type lamp with a clear lens specification that can be used for high lights and side lamps.


【Notes】
● Wire red: positive, white: negative.
● If the screws are tightened too much during installation, the main unit may enter the water into the strain lens and cause a malfunction. Be careful not to overtighten the screws.
● Be sure to waterproof the wiring connection with a waterproof heat-shrinkable tube or waterproof butyl tape.
● Due to the characteristics of LEDs, color unevenness occurs. When many are set up side by side, the color looks slightly different. Thank you for your understanding beforehand.
● Please install it so that it meets the vehicle security standards ● Only for 24VDC. Never use it for DC12V vehicles.


◆ Please read
* This product is an order product.
* This product cannot be returned. please note that. ⇒ About cancellation and return
