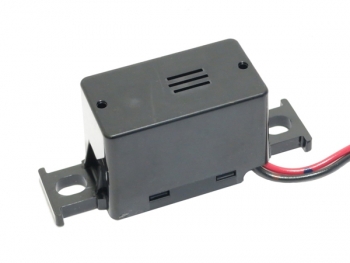

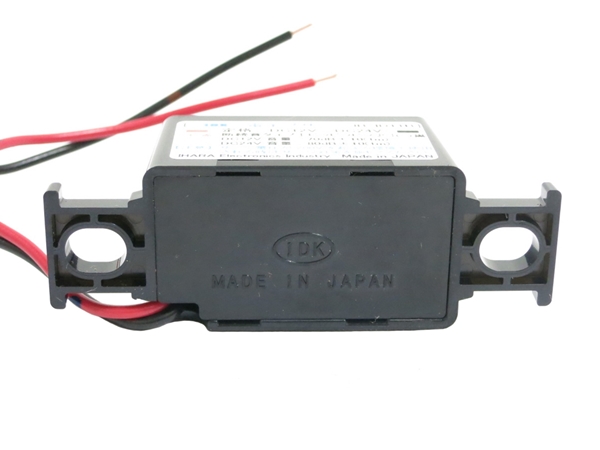

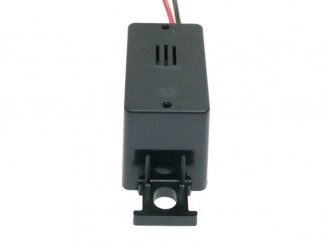

Automotive Electronic Buzzer JB-ID 12B Intermittent Sound, Standard Cycle 12/24 V Shared

Enlarge the image
Automotive Electronic Buzzer JB-ID 12B Intermittent Sound, Standard Cycle 12/24 V Shared
Automotive Electronic Buzzer JB-ID 12B Intermittent Sound, Standard Cycle 12/24 V Shared
Automotive Electronic Buzzer JB-ID 12B Intermittent Sound, Standard Cycle 12/24 V Shared
Automotive Electronic Buzzer JB-ID 12B Intermittent Sound, Standard Cycle 12/24 V Shared

Automotive Electronic Buzzer JB-ID 12B Intermittent Sound, Standard Cycle 12/24 V Shared

1,485円
Item #: 6147152

  • Quantity

Material // Case: Polycarbonate / Base: Heat resistant ABS
Dimensions // length: 73 x width: 25.1 x height: 29.5 mm, hole pitch: 59 mm, wiring length: 120 mm, weight: 0.024 kg
Dimensions /// PDF dimensions
Specifications / Ratings: DC24V25mA / DC12V10mA, 24V: 80 ± 10dB / 12V: 70 ± 10dB (distance 1M), intermittent sound / standard cycle (Peepy), Wiring distance: 10M (with 0.5mm2 or more wire)


[You can hear the sound of the electronic buzzer JB-ID 12B for vehicles (10 seconds / sound)


[Product Introduction]
A new electronic buzzer for cars and trucks is available. It can be used in a wide range of applications such as wing vehicles, dump trucks, and warning buzzers for specially equipped vehicles. Can be used as a replacement for Panasonic EB2122 / EB2124 flicker buzzer. 12V / 24V shared type.


【Product Features】
● Intermittent sound type (standard cycle)
Panasonic EB2122 / EB2124 Flicker buzzer substituteCan be mounted on 12V / 24V vehicles ● Electronic parts (car-mounted products) are manufactured by Japanese manufacturers and all manufacturing is done in Japan.
● RoHS regulated substances and SOC substances are not used.
● High quality and long life (more than 1000 hours) have been verified by various endurance tests.


【Notes】
● Connect the red wire to the plus side and the black wire to the minus side. (Reverse connection may cause damage.)
● If the power supply is used in a situation where the surge voltage exceeds 200 V, be sure to take measures against surges.
● This product is not waterproof / dustproof.
● Be careful not to allow oil, water, dust, etc. to adhere.


◆ Please read
* This product is an order product.
* This product cannot be returned. please note that. ⇒ About cancellation and return
