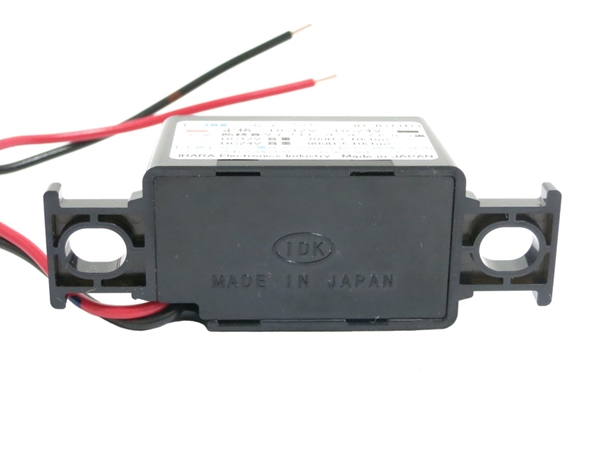

Automotive Electronic Buzzer JB-ID 11B Intermittent Sound, Short Cycle 12/24 V Shared
Material / / Case: Polycarbonate / Base: Heat-resistant ABS
Dimensions / / length: 73 × width: 25.1 × height: 29.5 mm, hole pitch: 59 mm, wiring length: 120 mm, weight: 0.024 kg
Dimension drawing //
Specifications / / Rating: DC24V 25mA / DC12V 10mA, 24V: 80 ± 10dB / 12V: 70 ± 10dB (distance 1M), intermittent noise · short cycle (piping), wiring possible distance: 10M (with 0.5mm2 or more wire)
[Video (10 seconds / with sound) for in-vehicle electronic buzzer JB-ID 11B]
【Description of item】
● Intermittent sound type (short cycle) [beep]
● Panasonic EB2132 · EB2134 Hololo Buzzer replacement ● 12V car · 24V car mountable ● Electronic parts (car compatible products) using products of Japanese manufacturers, manufacturing is all done in Japan.
● RoHS compliant substances and SOC substances are not used.
● High quality and long life (more than 1000 hours) have been verified by various endurance tests.
● Connect the red wire to the positive side and the black wire to the negative side. (In case of reverse connection, it may be damaged.)
● When using in a situation where the surge voltage of the power supply exceeds 200 V, be sure to take measures against the surge.
● This product is not waterproof / dustproof.
● Be careful not to attach oil, water, dust, etc.
